Fujitsu Lifebook Stylistic Q584 Battery Replacement

Written By: Connor Stanton
  • Comments: 1
Fujitsu Lifebook Stylistic Q584 Battery Replacement

Difficulty

Moderate

Steps

11

Time Required

4 minutes

Introduction

If you need to replace your Battery for the Fujitsu Lifebook Stylistic Q584 this guide will provide step-by-step instructions. In addition, it's important to remove the battery prior to replacing parts.

  1. 2gN3ZT1LcTcDtYKb

    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS

    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq

    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw

    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh

    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  7. VakGTMiHnkGUFgXF

    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

  8. QwDEjM225WJNuIMc

    • Pull up the cord that connects the battery to the motherboard

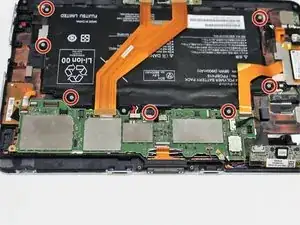

  9. 6ZmmEIHPJkXsYQJc

    • Remove seven 1mm screws using a PH00 screwdriver.

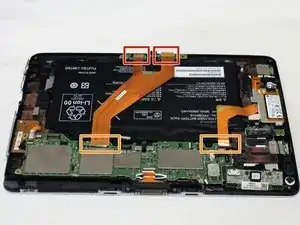

  10. s1kkvuViCVv3HFsH

    • Disconnect upper peripheral ribbons from motherboard.

    • Disconnect left peripheral ribbon from motherboard.

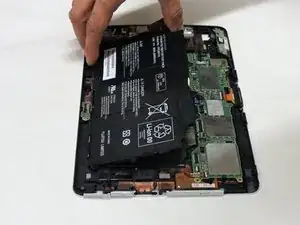

  11. LDiYX1HN1eDmUMHH

    • Gently lift the battery from the casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
