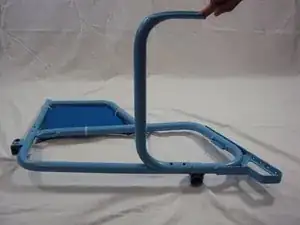

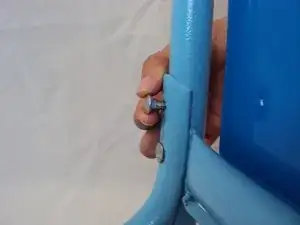

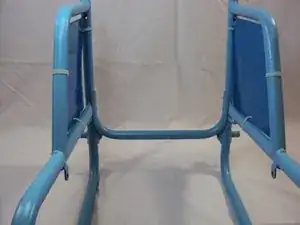

            Align the crossbar (with the hole in the center) with the screw holes on the bottom of one frame piece.
-
            Attach the crossbar to the left frame piece with two [2] frame nuts and bolts.
-
            Repeat on the opposite frame piece.

-

-

                  -

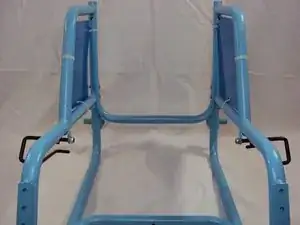

            Align the second crossbar with the holes on the back of the frame.
-
            Attach the crossbar to the frame using four [4] frame nuts and bolts.

-

-

                  -

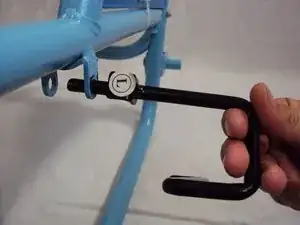

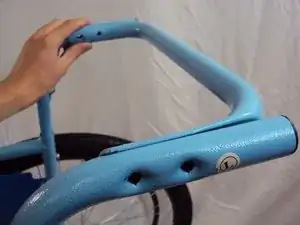

            Align the left (L) frame piece with the brake hole on the left frame piece.
-

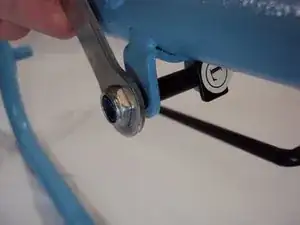

            Insert and tighten using one [1] brake bolt.
-
            Repeat using the right (R) brake with the right frame piece.

-

-

                  -

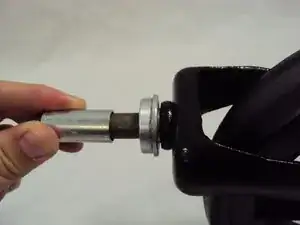

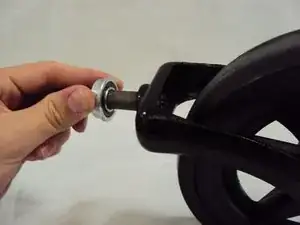

            Slide the ring-shaped piece of one castor bearing onto the axle of one castor.
-
            Slide the metal tube piece onto the axle of the castor.
-
            Repeat for the second castor.

-

-

                  -

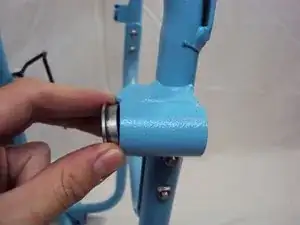

            Slide another ring shaped bearing piece into the castor hole on the frame.
-

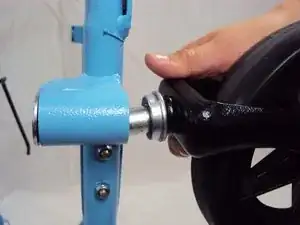

            Insert the entire castor piece (castor, ring, and tube) into the opposite side of the hole.
-
            Secure the castor and bearing pieces with a castor bolt.
-
            Repeat on the opposite side of the frame.

-

-

                  -

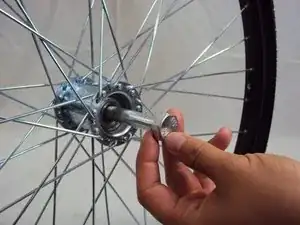

            Insert an axle bolt through the center of a rear wheel.
-

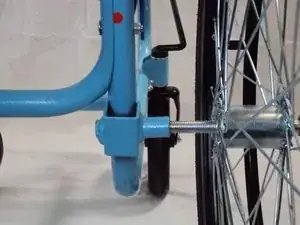

            Insert the axle bolt with wheel into the axle hole on the frame.
-

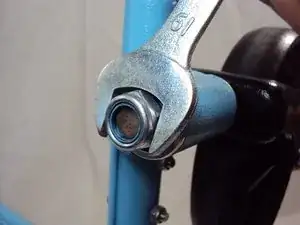

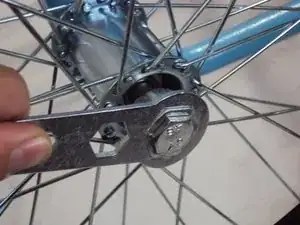

            Tighten the axle bolt.
-
            Secure the wheel with a bolt on the opposite side of the hole.
-
            Repeat on the opposite side of the frame to attach the other wheel.

-

-

                  -

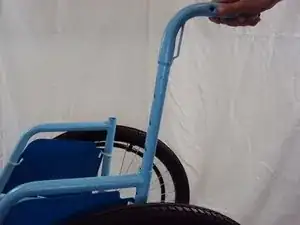

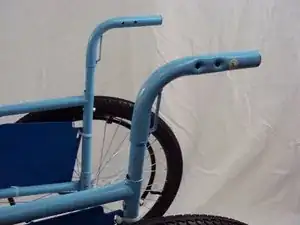

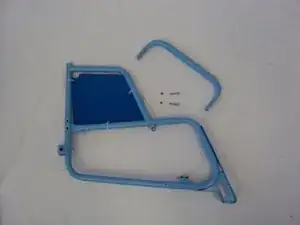

            Slide each handle into the respective slot on the top of the wheelchair.
-
            Adjust the handles up or down to your desired height.
-

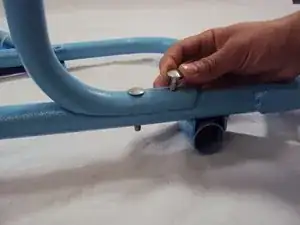

            Secure the handles in place with one bolt and nut for each side.

-

-

                  -
            Insert the remaining crossbar between the handles, and align the holes on both sides.
-

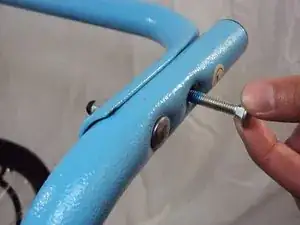

            Secure the crossbar with four [4] blue tipped bolts and rubber tipped nuts (two on each side).

-

-

                  -

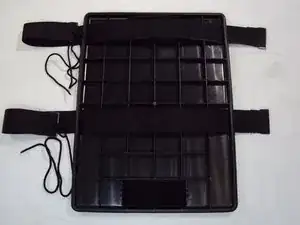

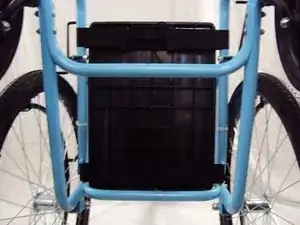

            Orient the plastic seat with the smooth side up.
-
            Loop the straps over the bars of the frame on either side.
-
            Rotate the wheelchair onto its back side.
-
            Secure the seat by tying each strap together.

-

-

                  -
            Reorient the chair so it is upright.
-

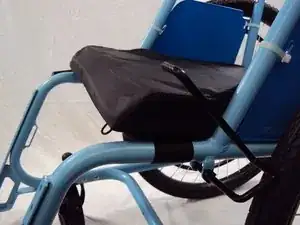

            Place the seat cushion on top of the plastic seat with the angled side in front.

-

-

                  -

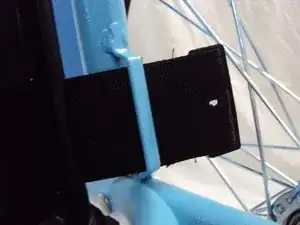

            Place the bottom of the backrest against the back of the seat cushion.
-
            Loop each strap behind the vertical bars of the frame.
-
            Secure the backrest by tying each strap together.

-

-

                  -
            Slide a footrest socket over the rail located near the front of the seat.
-

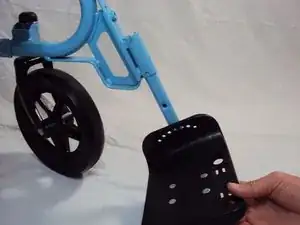

            Insert a footrest through the bottom of the footrest socket.
-

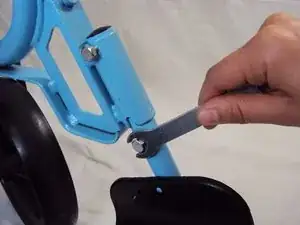

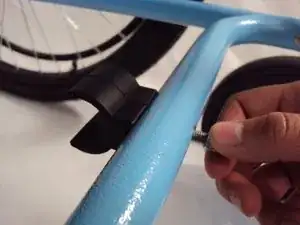

            Secure the footrest with a bolt above and below the socket.
-

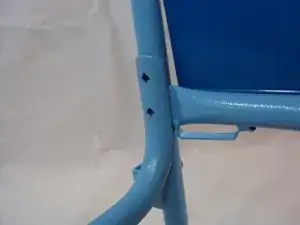

            Adjust the footrest socket to your desired height.
-
            Align the socket's bolt with the nearest hole in the rail, and tighten the bolt.
-
            Repeat this step on the opposite rail.

-

-

                  -
            Adjust the footrest socket to your desired height.
-
            Align the socket's bolt with the nearest hole in the rail, and tighten the bolt.
-
            Repeat this step on the opposite rail.

-

-

                  -
            Insert the pump bracket through the lower crossbar.
-

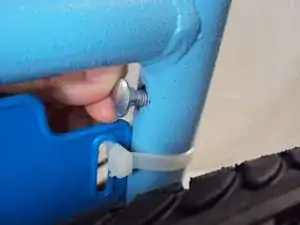

            Secure the bracket with a rubber tipped nut.
-
            Place the tire pump in the bracket.

-

To disasemble your device, follow these instructions in reverse order.
