Framework Laptop 12 Top Cover Installation

Written By: Arthur Shi
  • Comments: 0
Framework Laptop 12 Top Cover Installation

Difficulty

Moderate

Steps

5

Time Required

30 minutes - 1 hour

Introduction

Top Cover installation prereq guide

  1. PaNr1yEDnXUbb2Jj
    PaNr1yEDnXUbb2Jj
    YZOdViBOxLWVVL3I
    LXepfpCnMCCcxMfA

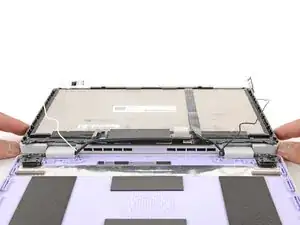

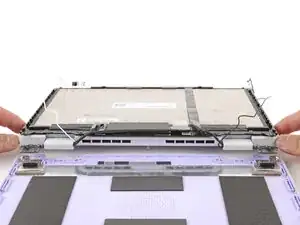

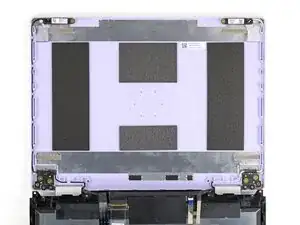

    • Use your fingers to lift the hinges over the Top Cover lip and lay them in place.

  2. MSiYAlSn4ESTwkLP
    MSiYAlSn4ESTwkLP
    sq1TpqGuFX6DF6CL

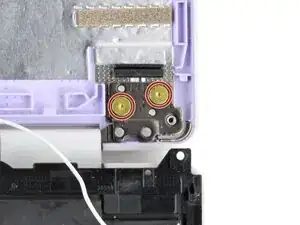

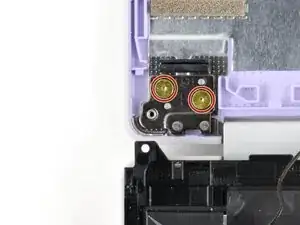

    • Use your Framework Screwdriver to install the four 2.4 mm‑long T5 Torx screws to secure the two hinges to the Top Cover.

    • Make sure to install these screws in the marked locations. There are additional screw holes on the hinges that are not for these screws.

  3. mMYdO2ykn1l1Upbc
    mMYdO2ykn1l1Upbc
    4VpEleQuNKwOHvkS
    tHVWIhotFHlC6Hb6

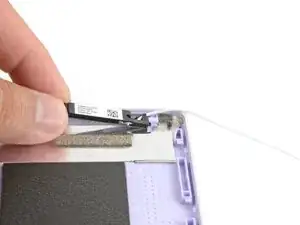

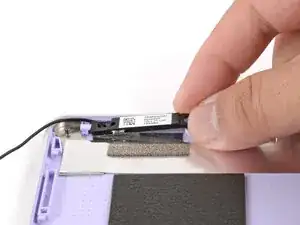

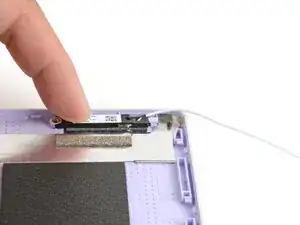

    • Lay each antenna in place in the Top Cover.

  4. agjUegMJYHMeiVDQ
    agjUegMJYHMeiVDQ
    3YEmIMY4CLxNGv5D

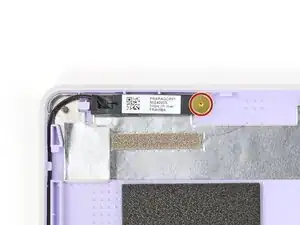

    • Use your Framework Screwdriver to install the two 2.4 mm‑long T5 Torx screws to secure the antennas to the Top Cover.

  5. yR5XJIXpPLo6KlDU
    yR5XJIXpPLo6KlDU
    AofcPeRMqTaLqGLO
    RPWWdReibRAuhYYs

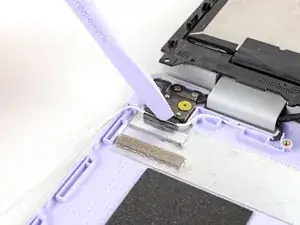

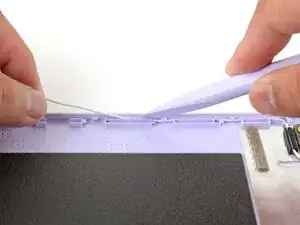

    • Use your fingers and your Framework Screwdriver to guide and press both antenna cables back into their channels.

    • Zoom in on the third image to see how the cables sit in their channels.
