Framework Laptop 12 Power Button Board Replacement

Written By: Arthur Shi

Comments: 0

Framework Laptop 12 Power Button Board Replacement

Difficulty

Easy

Steps

Time Required

5 - 15 minutes

Introduction

Follow this guide to remove and replace the Power Button Board in your Framework Laptop 12.

The Power Button Board (labeled as "Power Board") is a modular piece that contains the power button circuitry and light. If your power button stops working or no longer lights up, replacing the Power Button Board may fix it.

Tools

Framework Screwdriver

Parts

Framework Laptop 12 Power Button Board

Step 1

Before you begin repairs, unplug your laptop and shut it down from the operating system. This ensures that the laptop isn't in standby/suspend mode.
The indicator LEDs along the edges should be unlit. The laptop should be silent.
If you accidentally turn on the laptop during repair, hold the power button down for 10 seconds to shut it down.
Make sure your Framework Screwdriver has the T5 Torx bit (labeled as T-5) facing outwards. If it's not, pull the bit out and flip it.

Step 2

Set your Framework Laptop face-down on a clean work surface.

Step 3

Use your Framework Screwdriver to fully loosen the eight captive T5 Torx screws on the bottom of your laptop.
Most screws in your Framework Laptop (including these) are captive—they're designed to stay in place after you loosen them.
Your laptop comes with a spare set of screws in the frame above the battery. Be careful—the replacement screws aren't captive.

Step 4

Flip your laptop over so it's face-up on your work surface.

Step 5

Open the laptop lid so that both the screen and the base lie flat on your work surface.

Step 6

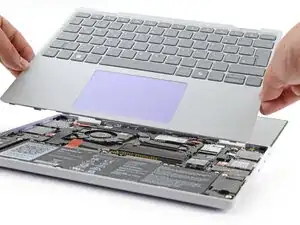

Use your fingers to grip the Input Cover in the hinge cutouts.
Lift upwards to swing the Input Cover up from the base of the laptop.
There are magnets holding the Input Cover down, so you'll feel some resistance. If it feels like a lot of force is required, check that you've fully loosened all the screws on the bottom of your laptop.
Remove the Input Cover.

Step 7

Use your Framework Screwdriver to loosen the captive T5 Torx screw securing the Power Button Board (labeled "Power Board").

Step 8

Use your fingers to lift and remove the Power Button Board.

Step 9

Congratulations on completing disassembly! The remaining steps will show how to reassemble your Framework Laptop.

Step 10

Use your fingers to lay the Power Button Board in place.
Use the two plastic pins on the laptop to align the Power Button Board.

Step 11

Use your Framework Screwdriver to tighten the captive T5 Torx screw to secure the Power Button Board.
Tighten the screw until it's snug. Don't over-tighten it, or you may strip the screw.

Step 12

Angle the bottom edge of the Input Cover towards the base of the laptop.
Align and insert the bottom edge of the Input Cover into the base of the laptop.
Make sure the slots along the bottom edge of the Input Cover slide into the tabs in the base.

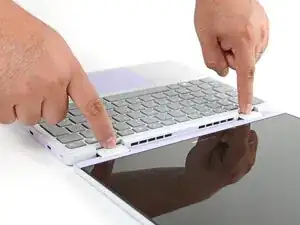

Lower the Input Cover's top edge onto the laptop until the magnets snap it in place.
Make sure the Input Cover sits neatly within the laptop frame and no corners are popping up.

Step 13

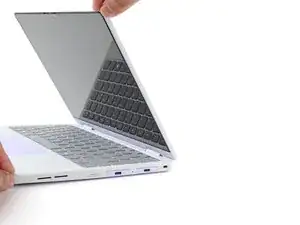

Close the laptop lid.

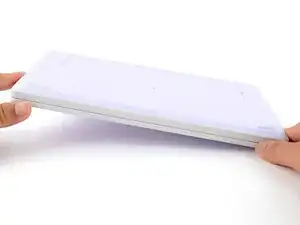

Flip your laptop face-down on a clean work surface.

Step 14

Use your Framework Screwdriver to tighten the eight captive T5 Torx screws on the bottom of your laptop.
Tighten the screws until they're snug. Don't over-tighten them, or you may strip the screws.
