Framework Laptop 12 Input Cover Installation (With Expansion Cards)

Written By: Arthur Shi
  • Comments: 0
Framework Laptop 12 Input Cover Installation (With Expansion Cards)

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

Input Cover installation with Expansion Cards installed.

  1. HlXOsUPuPR5UTUnF
    HlXOsUPuPR5UTUnF
    euBDDIJMdxks34JT
    DPSECZI1O3LHVTTb

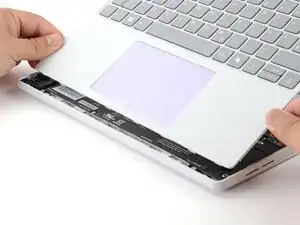

    • Angle the bottom edge of the Input Cover towards the base of the laptop.

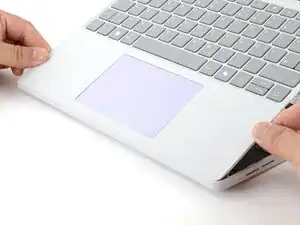

    • Align and insert the bottom edge of the Input Cover into the base of the laptop.

    • Make sure the slots along the bottom edge of the Input Cover slide into the tabs in the base.

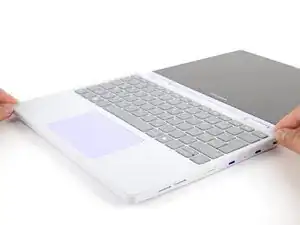

    • Lower the Input Cover's top edge onto the laptop until the magnets snap it in place.

    • Make sure the Input Cover sits neatly within the laptop frame and no corners are popping up.

  2. rk4BwMiYBUtyOqmu
    rk4BwMiYBUtyOqmu
    OKkxrqofAHaEk2Ul

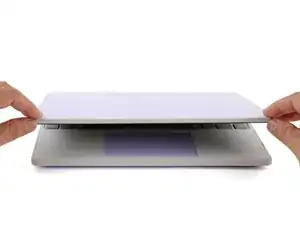

    • Close the laptop lid.

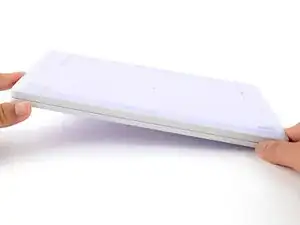

    • Flip your laptop face-down on a clean work surface.

  3. uSiaYQJxHWQEtBTp
    uSiaYQJxHWQEtBTp
    4PYD5BWmLBijnqFr

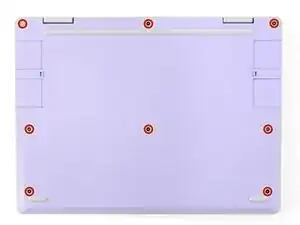

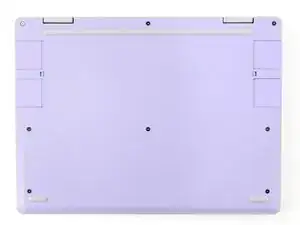

    • Use your Framework Screwdriver to tighten the eight captive T5 Torx screws on the bottom of your laptop.

    • Tighten the screws until they're snug. Don't over-tighten them, or you may strip the screws.
