Introduction
Both hinges installation prereq guide
-
-

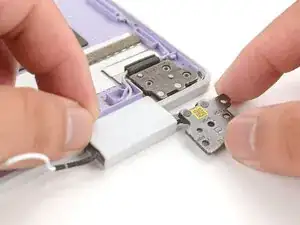

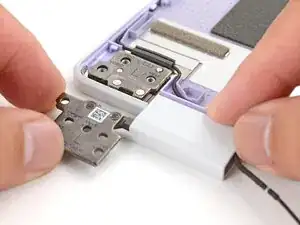

Lay both hinges in place in the Top Cover.
-

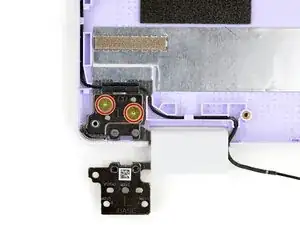

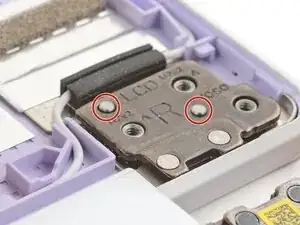

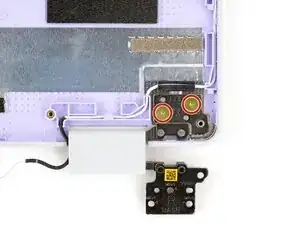

Use the alignment pins to help position each hinge in place.
-
-
-

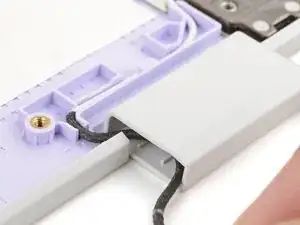

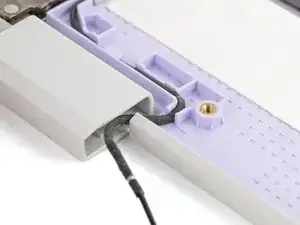

Make sure both antenna cables are properly routed in the Top Cover and tucked into the hinges, as shown in the images.
-
-
-
Use your Framework Screwdriver to install the four 2.5 mm‑long T5 Torx screws to secure the two hinges to the Top Cover.
-
