Introduction
Heatsink installation prereq guide
Used in the thermal repaste technique guide
-
-

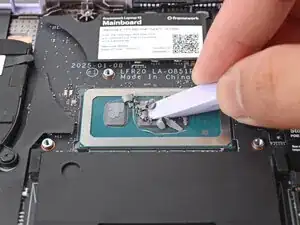

Use the flat end of your Framework Screwdriver to scrape off and remove the thermal compound residue from the processor.
-
Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.
-
-
-

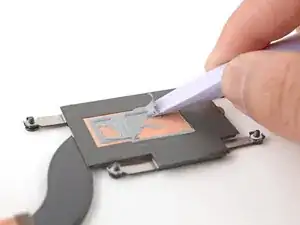

Use the flat end of your Framework Screwdriver to scrape and remove the thermal compound residue from the heatsink.
-

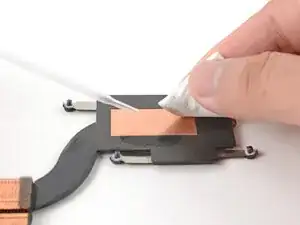

Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.
-
-
-

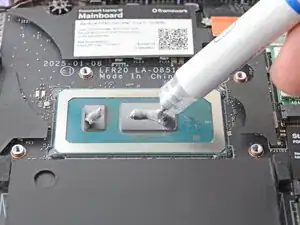

Apply a small bead of thermal paste to the small rectangle on the processor.
-
Apply a small line of thermal paste to the larger rectangle on the processor.
-
-
-

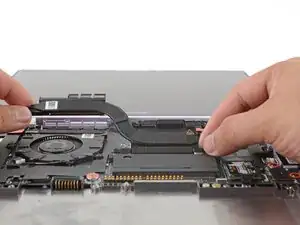

Carefully align and lay the heatsink over the processor.
-

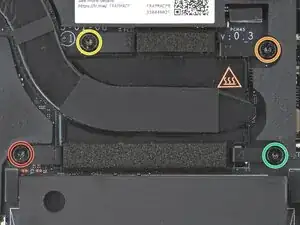

Use your Framework Screwdriver to gradually tighten the heatsink screws in the marked order until they're snug:
-
First screw
-
Second screw
-
Third screw
-
Fourth screw, then back to the first
-
