Framework Laptop 12 Fan Installation

Written By: Arthur Shi
  • Comments: 0
Framework Laptop 12 Fan Installation

Difficulty

Moderate

Steps

3

Time Required

5 - 15 minutes

Introduction

Fan installation prereq guide

  1. IBZPBj34FC2cpsLX

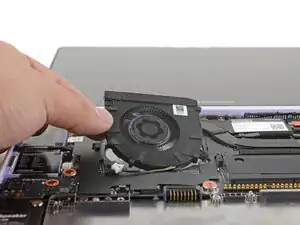

    • Lay the fan in the laptop.

  2. mKJyC4J46PFXybtg

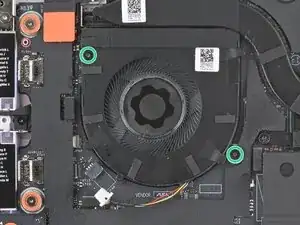

    • Use your Framework Screwdriver to tighten the two captive T5 Torx screws to secure the fan.

  3. smfxkWOxLELk1jdB
    smfxkWOxLELk1jdB
    KwEpaKQGSeBQHXPv

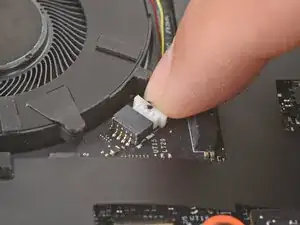

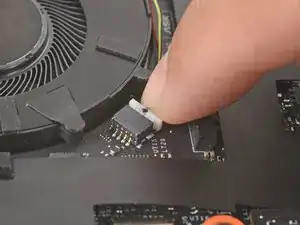

    • Use your fingers to gently push the fan connector back into its socket.

    • Don't push too hard, or you may break the socket. If you're having trouble, wiggle the connector slightly to help it slide into the socket.
