Framework Laptop 12 Antennas Installation

Written By: Arthur Shi
  • Comments: 0
Framework Laptop 12 Antennas Installation

Difficulty

Moderate

Steps

3

Time Required

1 - 2 hours

Introduction

Antennas installation prereq guide

  1. nbgyqjSJlOhoW6wr
    nbgyqjSJlOhoW6wr
    epLEWg5fmRYD1qaV
    mS5DPN2vMtxYwMib

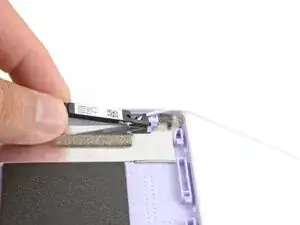

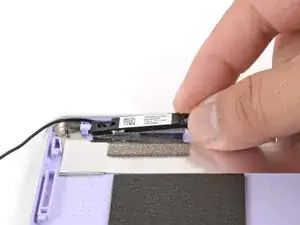

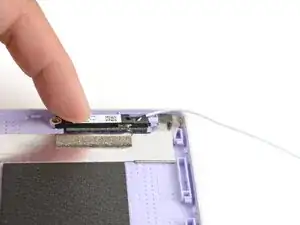

    • To install the antennas, you'll fasten them onto the frame first, then route each antenna cable into its Top Cover channel.

    • Lay each antenna in place in the Top Cover.

  2. nkvNIBAvMqqC2XrJ
    nkvNIBAvMqqC2XrJ
    jl3FcO3YifCkdJX5

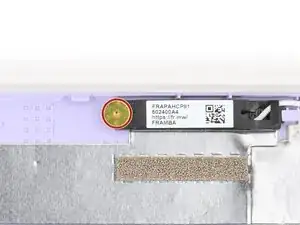

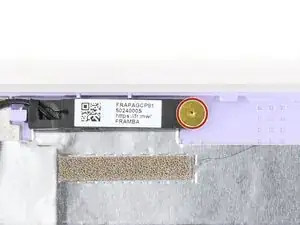

    • Use your Framework Screwdriver to install the two (one per antenna) 2.5 mm‑long T5 Torx screws to secure the antennas to the Top Cover.

  3. UQu56qqlTwx1CyyT
    UQu56qqlTwx1CyyT
    L6xViYm5GsMoNnOY

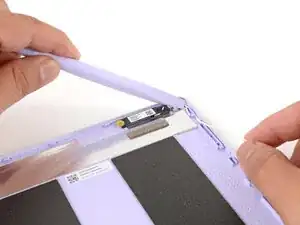

    • Use your fingers and your Framework Screwdriver to carefully guide each antenna cable back into its channel.

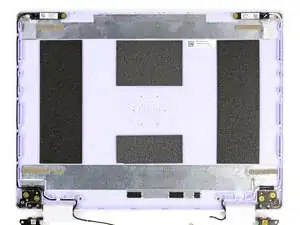

    • Zoom in on the second photo to see how the antenna cables sit in their channels.
