Fix NUC8i7BEH overheating

Written By: Vladimir Knobel

Comments: 42

Difficulty

Moderate

Steps

Time Required

30 minutes

Introduction

The small form factor makes the NUC too prone to overheating due dust accumulation in the CPU cooler air outlet fins

Tools

Step 1

Place the NUC upside down and select a PH2 Phillips screw driver bit

Step 2

Start by using a Phillips head #2 screw driver to remove the lower screws on the lower case door.
These screws are held in with retainers, so they won't fall out when you flip the lid.

What are the size of these case screws?

Michael Lepore -

Step 3

Lift the door, and keep an eye on the cables that connect to the NUC's motherboard. These cables are the power and data cables for the 2.5" hard drive bay.
Carefully unplug the cables from the motherboard, and set the bracket aside.
In the last photo, the slot for a blade SSD is marked with a red arrow. This is where you would install the blade SSD, and use a screw to hold it in place.

Step 4

Change the screw driver bit to the PH1 one.
Unscrew the V-NAND SSD and carefully slide it out of its connector.

Step 7

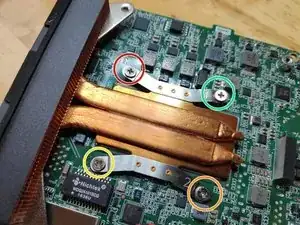

Unscrew the screws marked in red circles

Hello, may I know what is the screw size? I already stripped mine so I'm trying to get a replacement screw when I have the stripped out. Mine was stripped and cannot get it out. Can you please help me? I've already used the rubber and glue method but no luck.

Fitri Suhaimi -

Step 8

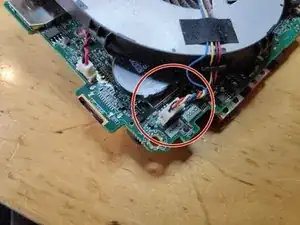

Remove the WiFi and Bluetooth antenna cables (be extremely careful when doing this otherwise you risk to rip the base contact terminal off the PCB)
Remove the stereo mic cable from the motherboard connector.
Pay attetion to the WiFi cable hidden under a black piece of tape

Remove WiFi an Bluetooth antenna Cable very carefully. Terminals can be ripped of easily.

Christian Reinhold - 06/09/20

very true, I’ll add it to the guide

Vladimir Knobel - 06/09/20

Added to the step in the guide, thanks for pointing that out!

Vladimir Knobel - 06/09/20

Note that the WiFi and Bluetooth antenna cables lift/pull off vertically (not slide off horizontally, as I presumed from the photo). They are circular connectors with a pin in the middle. Getting them off was okay (I actually used tweezers), but it was fiddly work trying to push them back on.

Carl -

Step 9

Disconnect mic cable

Step 10

Remove padders from the sides

Step 11

Not all are necessary only the two depicted.

Hallo, kann man den Lüfter auswechsel. Bei mir ist er nach ca. 15-20 min sehr laut.Ich glaube das das Lager defekt ist . Wenn ja, wo bekomme ich einen neuen her?.Für eine ausführliche Nachricht wäre ich sehr Dankbar.

Mit freundlichen Grüßen

Joachim Arndt, j.a.50@web.de

joachim arndt -

Step 12

Use a pry tool to lift the motherboard from the casing

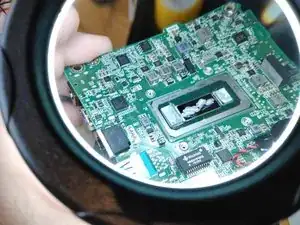

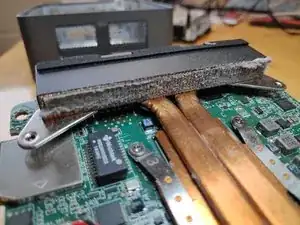

Marked with red circles the dust signs evident on first sight

Amazing! Could replace the fan. Have also removed the 4 screws of the heatsink , and renewed the thermal paste underneath it. That was necessary. It was dried out. THANKS!! It works like new: no overheating anymore. A lot faster.

lutgart.schreyen -

The key for getting the motherboard is to move apart very firmly the two opposite sides of the metal casing, so as to let the connectors move down.

Jan Drouaud -

Thank you Jan for that tip!

I spent 20 minutes trying to jiggle it out before I read that!

Yes, pull it apart somewhat and it comes out (relatively) easily.

Bob Mudford -

Jan‘s hint helpdesk me too! THX!!!

ChBuenger -

Step 13

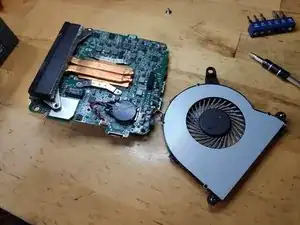

Remove the 3 screws fixing the CPU fan
Remove the fan power connect from the motherboard

Step 14

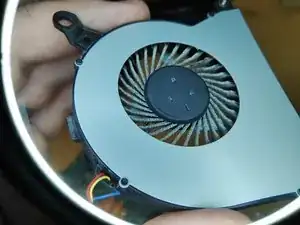

You will need to use compressed air, a small vacuum cleaner or something similar to blast off all the stucked dust.

Step 15

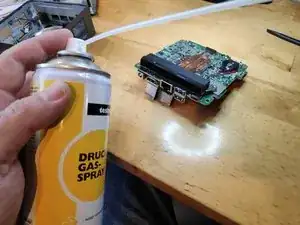

I'm using a compressed air can (optional)

Step 16

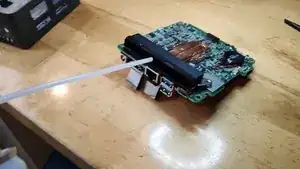

Video of the procedure

Step 17

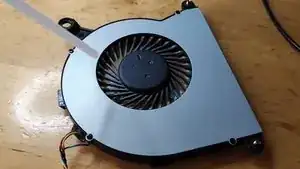

Video of the procedure

Step 18

This step is probably not necessary, but for the sake of completeness here it is.

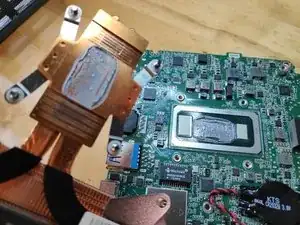

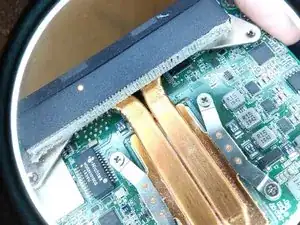

Remove the screws holding the CPU cooler following the numbers on them.

Step 19

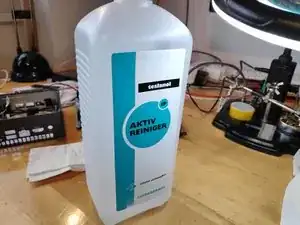

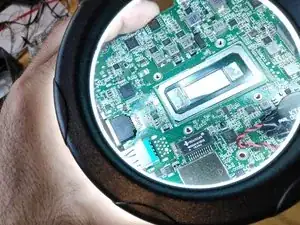

Use isopropyl alcohol for this, be careful not to touch the the thermal pads on the chips around the CPU.

Step 20

Be careful not to apply too much of it.

Good morning, i'm tryinf to fix my nuc 8i5beb, I've found a burned component on the motherboard and I can't read the referance name. it's nead the connector right down the dissipator. can anyone help me? Thanks

Roberto -

Conclusion

To reassemble your device, follow these instructions in reverse order.
