Ethernet Port Replacement

Written By: Denis
  • Comments: 1
Ethernet Port Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 40 minutes

Introduction

This guide will teach you how to access the motherboard in order to replace the Ethernet ports.

  1. 1oUd52Ri4rlZrkTk
    1oUd52Ri4rlZrkTk
    gN6CD6QEKD1b4skm
    APZBTa2cOkyOVvsi

    • Remove the antennas by unscrewing them from the base.

    • Flip over the device and locate the four rubber feet on the bottom.

    • Remove the rubber feet with tweezers

  2. elXxaLtMAruGdU55

    • Remove the 0.4cm head screws from each slot with the #1 Phillips head Screwdriver.

  3. RDfmXm2vHrd5n1sf

    • Use a blue plastic opening tool to remove the top cover.

    • Move the blue plastic opening tool gently underneath the top cover from side to side.

  4. OED1XuTLgR3PaAf5
    OED1XuTLgR3PaAf5
    4wbYS2TcvVEPSIhA
    AMABFYuJML3r4tTJ

    • Gently lift the motherboard and remove it from the case

    • Put the motherboard over a (preferably white) surface.

  5. MdNTxQSlXJm4JYwb
    MdNTxQSlXJm4JYwb
    kFbqJSGLNuwZH62Y
    WUlRRN3bOIRTrnOj

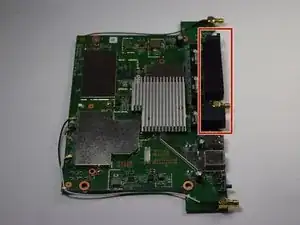

    • Locate the Ethernet ports

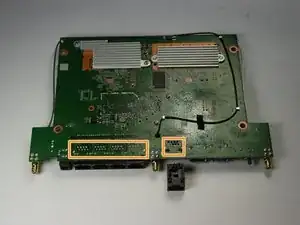

    • Flip the motherboard and locate the 40 solder points corresponding to the Ethernet ports

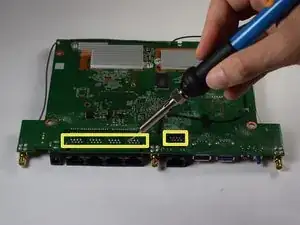

    • Melt the 40 solder points using a soldering gun.

    • Wait between five and seven minutes for the ports to cool down.

  6. iaYIrBwZhLpIYCSd

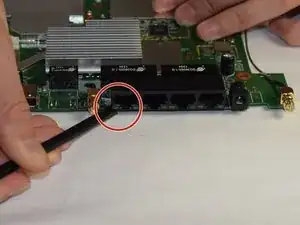

    • Hold the motherboard down and use the spudger to remove the Ethernet Ports.

Conclusion

To reassemble your device, follow these instructions in reverse order.
