Escort Passport 9500IX Button Board Replacement

Written By: Kennedy Morales
  • Comments: 2
Escort Passport 9500IX Button Board Replacement

Difficulty

Moderate

Steps

7

Time Required

8 minutes

Introduction

Are the buttons on your radar not responsive? If so, the button board could be damaged. Follow this guide to replace your button board.

  1. MlYNlfLwIqFInckN

    • Remove the three 1.2 mm Phillips #1 screws on the back of the device.

    Where can I purchase the BUTTONS ???

    Sergio -

    I tried to look for the buttons on Google and eBay but couldn't find them.

    Sergio -

  2. q3KytcKK2BDUo1Uy

    • Pry off the back panel of the radar using the nylon spudger.

  3. lQBbxHDcL1goYVBb
    lQBbxHDcL1goYVBb
    pvxkp1BVDCqf4jCO
    FTg52Pr3xidqfXfL

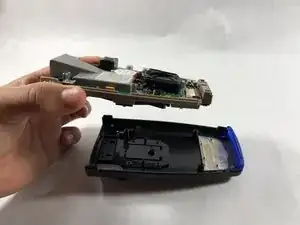

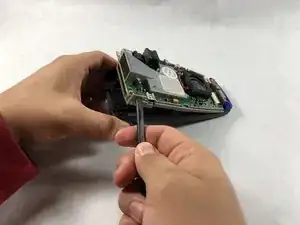

    • Carefully pry the grey frame off the black plastic covering using the nylon spudger.

  4. DV13vHOiKRvybOja
    DV13vHOiKRvybOja
    jRbIBukDfhGThMu5

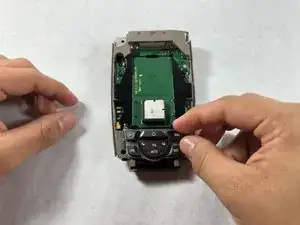

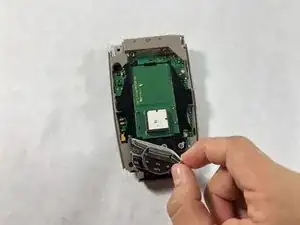

    • Slowly peel the buttons off the button board.

  5. vlXI1ITRVARUWnMA
    vlXI1ITRVARUWnMA
    RRwf3gMMDGr2EDyt
    Pib32x3qtELqOJNv

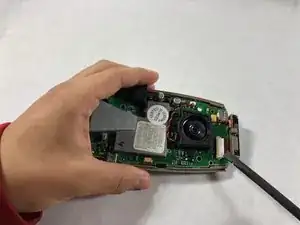

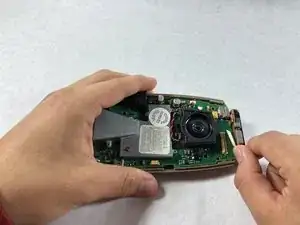

    • Detach the orange flap on the motherboard.

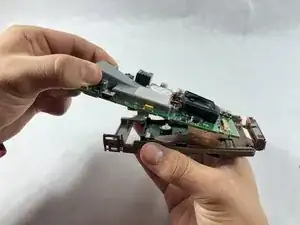

    • Carefully remove the motherboard from the grey plastic frame.

  6. WieJ1tNSDHMCKBXI

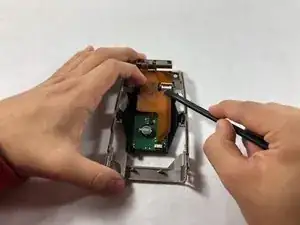

    • Detach the orange flap directly behind the button board.

  7. YRU5Ox2PeLmeoMwI
    YRU5Ox2PeLmeoMwI
    IKjSQbyeoBbIW6C5
    6eOWsAZVwrT4onZ3

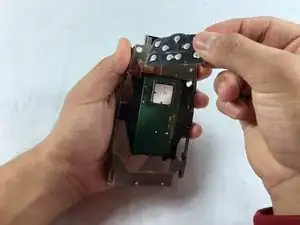

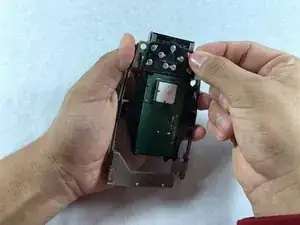

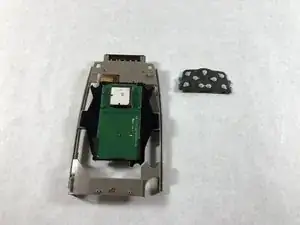

    • Carefully pull out the button board from the grey frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
