Epson PictureMate Pal PM 200 Motherboard Replacement

Written By: Andre
  • Comments: 0
Epson PictureMate Pal PM 200 Motherboard Replacement

Difficulty

Moderate

Steps

10

Time Required

20 minutes

Introduction

  1. EiAeXUB5bZOHY1RP
    EiAeXUB5bZOHY1RP
    HElFWZXaNZgYpeV2
    euPDHvlTLKuOBUqT

    • Be certain that device is powered off and unplugged as to not damage any of the internal components before beginning.

    • Power off device and use a metal spudger to remove each of the two caps over the screws that hold the top plate to the device.

  2. RUCBeUTxlFamIFuc

    • Remove the two 6 mm Phillips screws.

  3. K6OjLEQLMlR3s1b5
    K6OjLEQLMlR3s1b5
    WirF5hxc1diYLYD5

    • Gently lift the lid and turn it to face the daughterboard underneath.

    • Gently pull the no-fuss ribbon cable out from its connector.

    • The other end of the ribbon cable is still in the device's motherboard. Only remove the end connected to the daughterboard unless stated in a later step in order to not lose it due to unnecessary removal.

  4. ZoDT2oMiWagOEH1H
    ZoDT2oMiWagOEH1H
    ZIgcQNOxrUVPdqZ5

    • Remove the printer top plate.

  5. JP13FJTBmNKofEGD
    JP13FJTBmNKofEGD
    XHhAudyn6qLNjpCB

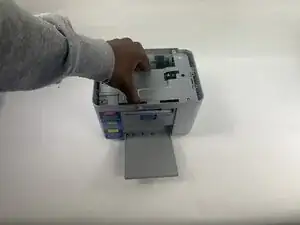

    • Remove the following Phillips screws:

    • Six 8 mm screws

    • Four 6 mm screws

    • Remove the metal bracket.

  6. IcN1Xgp1FoVMiI65
    IcN1Xgp1FoVMiI65
    wVIHoIVQdRcJYSBv
    uV5yILUoouFYceti

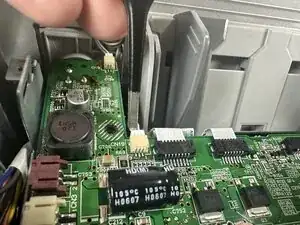

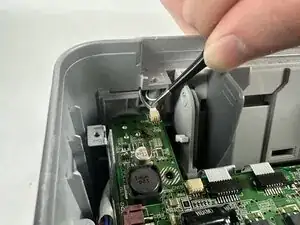

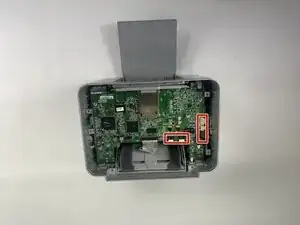

    • Remove connectors from their sockets with tweezers.

    • It is recommend to grab the connectors by the plastic and not grabbing the wires they are connected to as this can cause damage to the wire insulator or loosen the wire from the connector.

  7. XBOaD23nqyO1Yrm1
    XBOaD23nqyO1Yrm1
    cJMIQ5MSZn5lXgCq
    4ehRCCBeO5GmhMtn

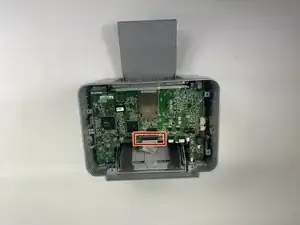

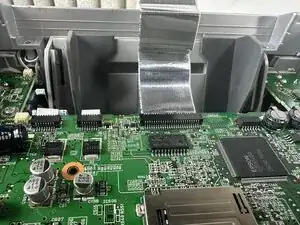

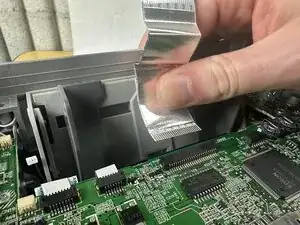

    • Disconnect the ribbon cable that connects to the daughterboard by pulling it out horizontally in line with the connector.

  8. Lx63NkYXVAfGntOu
    Lx63NkYXVAfGntOu
    4wy51cWYiTxxURmS
    cOg6kwcQoBOiHQyX

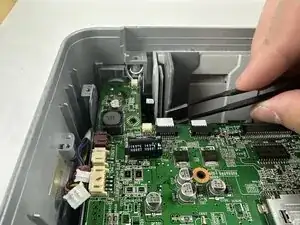

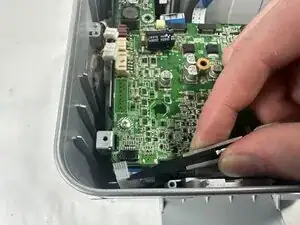

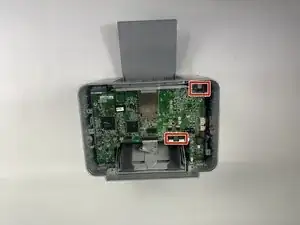

    • Remove all other ribbon cables with tweezers. You can use the nylon-tipped reverse tweezers to make it harder to damage the cable.

    • There are some ribbon cables that are attached to the under side of the board, but they are in the same area as the others.

  9. qV3lFd5oeeBMWLk6
    qV3lFd5oeeBMWLk6
    qMGxMaxAZZJ5uxDd
    4ucEUJiNtKHEmuFj

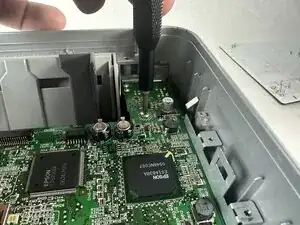

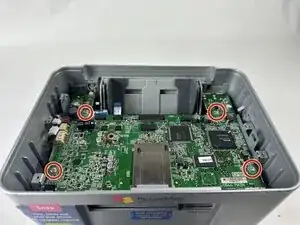

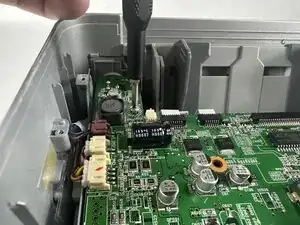

    • Remove the four 8mm screws Phillips screws that secure the motherboard.

  10. UwqXOeKkMSVCiMrJ
    UwqXOeKkMSVCiMrJ
    FEKSYaCMUvTuf1mv

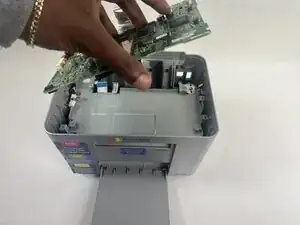

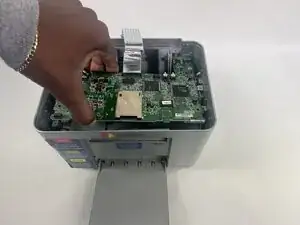

    • To remove the board, you will have to gently pry the outer casing as shown in the image to get the power jack and USB connector to clear the plastic. From there, simply slide out at an angle to get the board free. You should be left with the board as shown in the second picture

Conclusion

To reassemble your device, follow these instructions in reverse order.
