Epson PictureMate Pal PM 200 Display Replacement

Written By: Andre
  • Comments: 0
Epson PictureMate Pal PM 200 Display Replacement

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

The user interface is given on the 53mm LCD screen. As such, it is a crucial component in being able to operate the printer. If you are experiencing visual errors, or the screen is not turning on, this guide will outline how to replace the screen to try and remedy that problem.

  1. EiAeXUB5bZOHY1RP
    EiAeXUB5bZOHY1RP
    HElFWZXaNZgYpeV2
    euPDHvlTLKuOBUqT

    • Be certain that device is powered off and unplugged as to not damage any of the internal components before beginning.

    • Power off device and use a metal spudger to remove each of the two caps over the screws that hold the top plate to the device.

  2. RUCBeUTxlFamIFuc

    • Remove the two 6 mm Phillips screws.

  3. K6OjLEQLMlR3s1b5
    K6OjLEQLMlR3s1b5
    WirF5hxc1diYLYD5

    • Gently lift the lid and turn it to face the daughterboard underneath.

    • Gently pull the no-fuss ribbon cable out from its connector.

    • The other end of the ribbon cable is still in the device's motherboard. Only remove the end connected to the daughterboard unless stated in a later step in order to not lose it due to unnecessary removal.

  4. ZoDT2oMiWagOEH1H
    ZoDT2oMiWagOEH1H
    ZIgcQNOxrUVPdqZ5

    • Remove the printer top plate.

  5. JdRH1va31bguQawZ

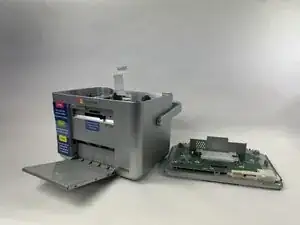

    • Set the panel to the side on a neat, flat surface.

  6. QOJEnqtPXWgoPxuA
    QOJEnqtPXWgoPxuA
    pLC4MNlBIWXq1Igg
    65UhdEcCLsbVtOrN

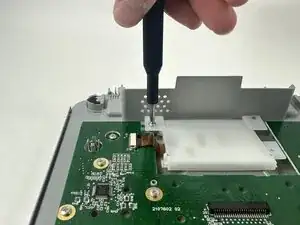

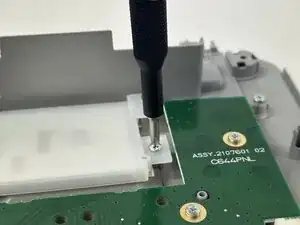

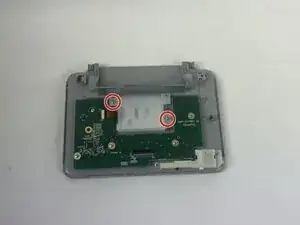

    • Remove the two 8 mm Phillips screws securing the display assembly to the top panel.

  7. mZInQYphDQTachYH
    mZInQYphDQTachYH
    v1EWwkk5X1A1wJVM

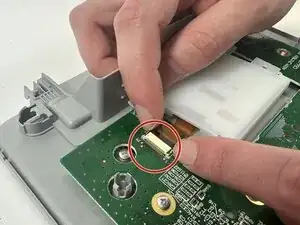

    • Pull the black ZIF locking flap toward the ribbon cable.

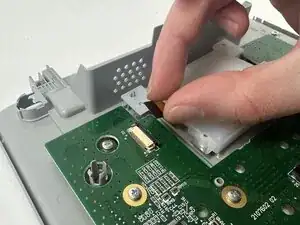

    • Disconnect the ribbon cable from the daughterboard.

  8. YobJLDuOkdFNP1Wd
    YobJLDuOkdFNP1Wd
    GHcWNjGyJCE3RYVr

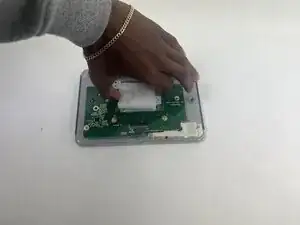

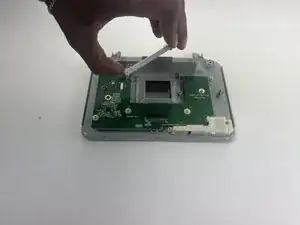

    • Remove the display assembly from the top panel.

  9. 1w4bUWaIHiqudQSv
    1w4bUWaIHiqudQSv
    U5a24sT3jDCviWOg

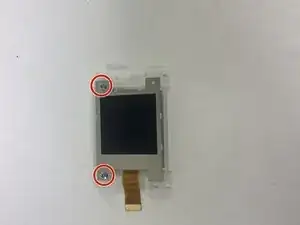

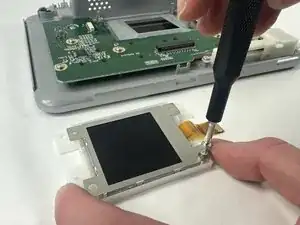

    • Remove the two 8 mm screws that secure the display to the housing.

  10. IAfvfELCVnbfDNYr
    IAfvfELCVnbfDNYr
    AZkjVv1C1CVBUEPP
    1v5eexDoIYAbH2QX

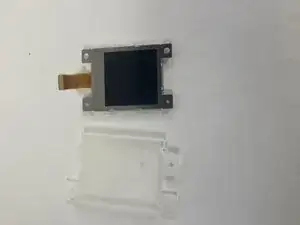

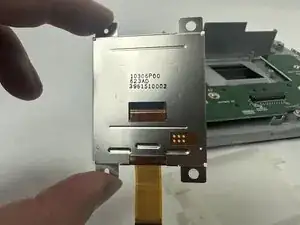

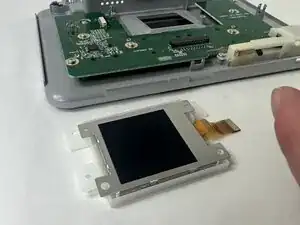

    • Remove the display from the housing.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
