EDCO PRO KL-18 Concrete Saw Throttle Cable Assembly Replacement

Written By: Sam Omiotek
  • Comments: 0
EDCO PRO KL-18 Concrete Saw Throttle Cable Assembly Replacement

Difficulty

Moderate

Steps

11

Time Required

10 - 30 minutes

Introduction

Follow this guide to replace the throttle cable assembly on an EDCO PRO Walk Behind Concrete Saw model KL-18 39600-HD.

  1. jIcWdrvv4sFhphJE
    jIcWdrvv4sFhphJE
    oD41bEjoBIcL6ElR

    • Before you begin, ensure the machine is powered down and cool to the touch.

    • Chock the wheels to prevent the machine from moving while you are working on it.

  2. y6ew5ZoYKrCNJad1
    y6ew5ZoYKrCNJad1
    mvvkWdrD5QoymCGa
    2TTSbR1mFb2RTqtw

    • Flip the ignition switches on the motor and the handle bar into their "OFF" positions.

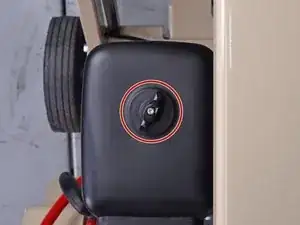

  3. Rm5CPsgK2SAGjSXN
    Rm5CPsgK2SAGjSXN
    t1eUVYlPIu4W2sOB

    • Flip the fuel cutoff valve switch into the off position.

  4. N2efYTH2SmlsZq3C
    N2efYTH2SmlsZq3C
    UKw6ARpdirV5RA5a

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

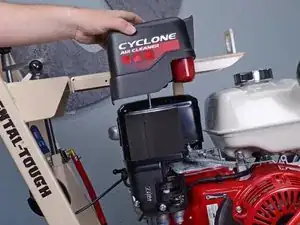

  5. 5DmXwKnEKf1Rr3EU
    5DmXwKnEKf1Rr3EU
    Q4W6MZOcMunBwcmV
    wm6VcCZFNbwFOIxf

    • Unscrew the wing nut on top of the air cleaner cover.

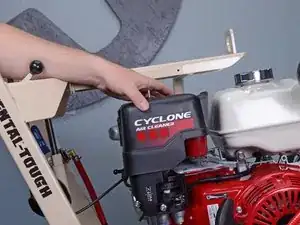

  6. iRQ5YxGPkJXdDQyi
    iRQ5YxGPkJXdDQyi
    cEm3xhIsDjBJldUE

    • Remove the air cleaner cover.

    • This will make it easier to reach the throttle cable holder with a screwdriver.

  7. qReyrJNtB2epeZQO
    qReyrJNtB2epeZQO
    eaWKgSU2DgldXB6c

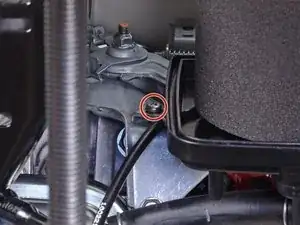

    • Use a short Phillips screwdriver to remove the screw securing the throttle cable holder.

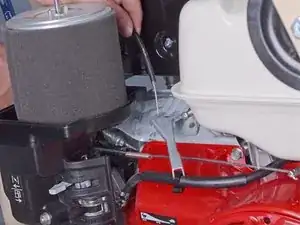

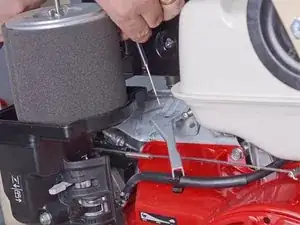

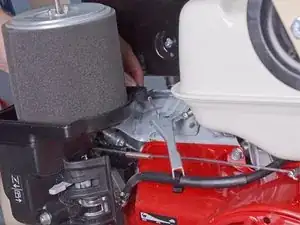

  8. vTC5CDKWEhvsRvBB
    vTC5CDKWEhvsRvBB
    hVnEKcP6KIbZArln
    IPStrXnbsLWC6aPP

    • Lift the throttle cable up to a vertical position and pull it straight up to remove it from the throttle control lever.

  9. uWilhaB5NEsgRSyZ
    uWilhaB5NEsgRSyZ
    jGVtCrevpQvCUlL3

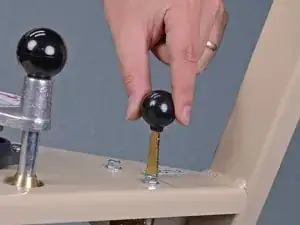

    • Grip the black throttle control knob and pull it straight up and off of the control lever to remove it.

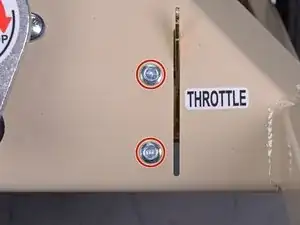

  10. RLOMKIFFOr4kaAE5

    • Use a 7/16 inch socket with a 3/8 inch wrench to remove the two bolts and accompanying nuts securing the throttle control assembly from the handlebar.

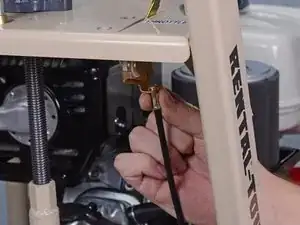

  11. tdjqXH24Q5DLqZEJ
    tdjqXH24Q5DLqZEJ
    asCUsKVAvT4AuldU

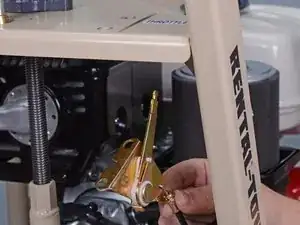

    • Remove the throttle control assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
