Dyson Supersonic HD01 Filter Cover Replacement

Difficulty

Moderate

Steps

2

Time Required

2 - 10 minutes

Introduction

If you've found yourself in a situation where the plastic air filter cover of your Dyson Supersonic HD01 has been damaged due to a drop or impact, fear not! This guide is here to help you replace the cover and get your hairdryer back in working order.

  1. vwcgHLXeToqJwEHg
    vwcgHLXeToqJwEHg
    Fjcc2bliiQl1OMqP

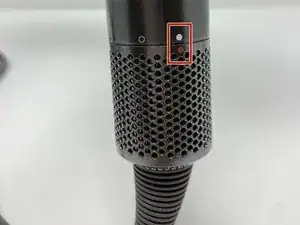

    • Find the red dot along the top of the filter cover.

    • The red dot will be aligned with the white dot at the bottom of the hair dryer's handle.

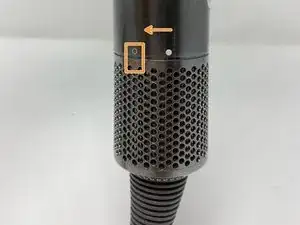

    • Twist the filter cover counter-clockwise until the red dot is shifted to align with the white empty circle on the dryer handle.

  2. nqvTMSOXJZOLGOxO
    nqvTMSOXJZOLGOxO
    fkXPQCZqXh65oEmL

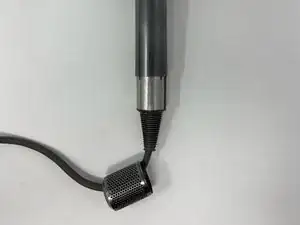

    • Remove the filter cover by sliding it off of the body of the hairdryer.

    • Use a saw or sidecutters to destructively remove the broken filter cover from the cable while taking care to not damage the insulation of the power cable.

    • The replacement part will have a slot on the side that makes it possible to install it by sliding onto the cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
