Introduction
Can't watch your favorite movie? Replacing the optical disc drive may help.
Tools
-

                  -
            Before removing the screen, be sure to turn off and unplug your device.
-
            Flip your device over, so the bottom is facing up.

-

-

                  -

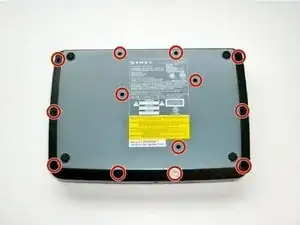

            Remove the back cover held by thirteen 3.175 mm head, 9.525 mm length pan-head Phillips screws.

-

-

                  -

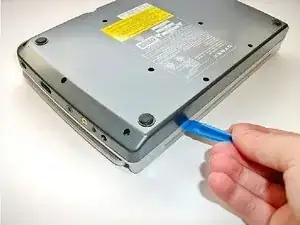

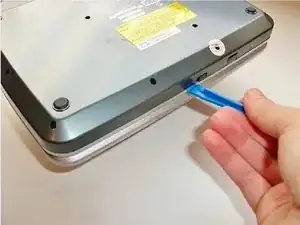

            Use a plastic opening tool to pop open the back case.
-

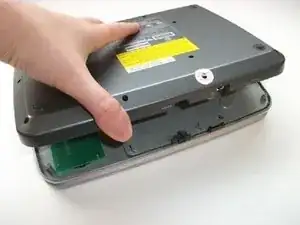

            Do not separate the back cover completely, wires are still connected to both sides.

-

-

                  -

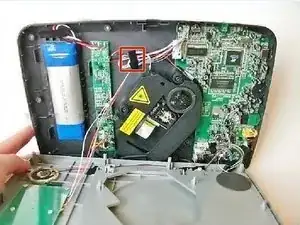

            Hold the back cover upright and remove the black tape connecting the wire group to the cover.
-
            Remove the bottom two pieces of tape connecting wires to the CD tray.

-

-

                  -
            Locate the small circuit board on the underside of the buttons.
-

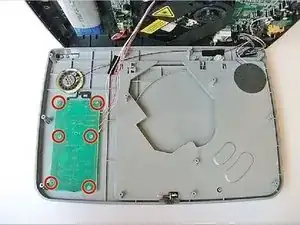

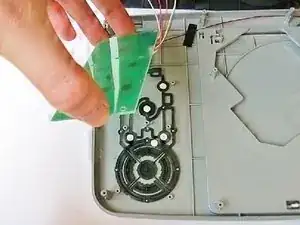

            Remove the circuit board for the buttons, held by six 3.175 mm head, 4.762 mm length flat-head Phillips screws.

-

-

                  -

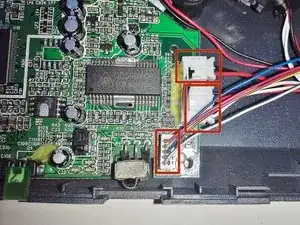

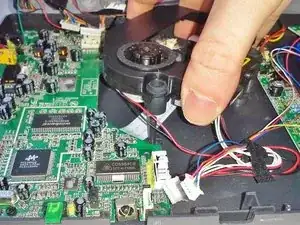

            Remove the three wire connections that are located on the main (largest) circuit board.
-

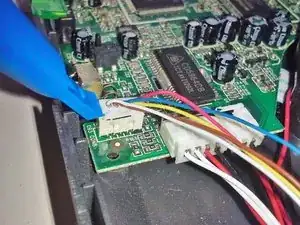

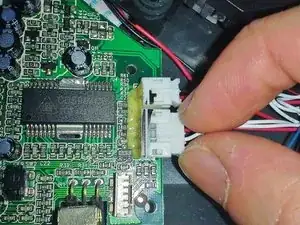

            The connection can be gently removed with a plastic opening tool or with your fingers by pinching the ends and pulling.

-

-

                  -

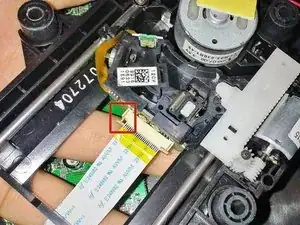

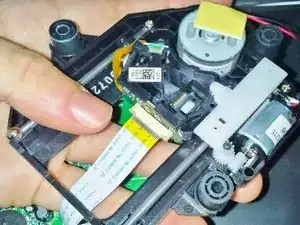

            Now that the optical drive is removed from the case, flip it over and locate the ribbon cable.
-
            Gently pull out the two sides of the brown tab underneath the ribbon cable, see images for detail.
-
            Once both sides of the tab are out, it should require no force to pull the ribbon cable out of the connection on the optical drive.

-

-

                  -

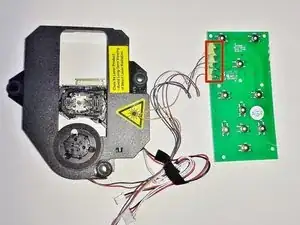

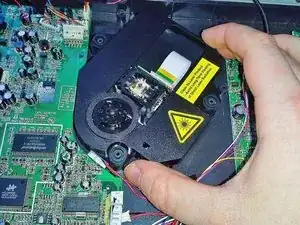

            Now the optical drive should be removed and still connected to the circuit board which was underneath the buttons.
-
            Desolder the optical drive wires from the circuit board.

-

To reassemble your device, follow these instructions in reverse order.
