Disassembly Guide for Frame

Written By: James Lipsett
  • Comments: 0
Disassembly Guide for Frame

Difficulty

Easy

Steps

4

Time Required

15 minutes

Introduction

This is only a prerequisite guide.

  1. rT1QeLQjV1tJV5kZ

    • Disconnect any power source and/or turn off device.

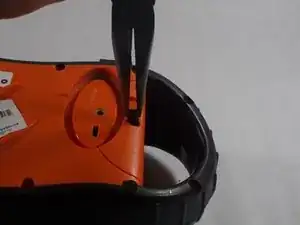

  2. MyF5D5ZsmO4YC6o2

    • Remove the 15 rubber plugs from the cavities using needle nose pliers.

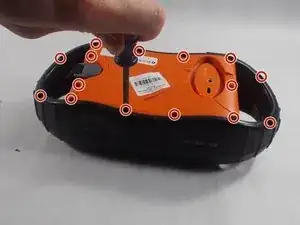

  3. MFJihdcbkWrBRThH

    • Use a phillips head screwdriver to remove the fifteen 6.4mm screws.

  4. IwpPuAOGbvngpOAb

    • Carefully separate the two sections of the frame.

    • Wires still connect the two sections. Be cautious to avoid damaging the wires, terminals, and electronics.

Conclusion

To reassemble your device, follow these instructions in reverse order.
