Introduction
-
-
Pop off the plastic back cover to reveal the battery. Use a fingernail to lift up the battery from the top side. Under, you will see the SIM card slot.
-

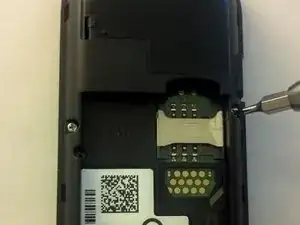

Using a Phillips screwdriver, unscrew the six screws holding in the back shell.
-
Use a spudger to wedge between the seam of the front and back shell, and wedge the back shell up.
-
-
-

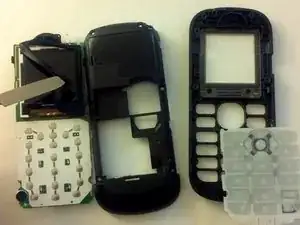

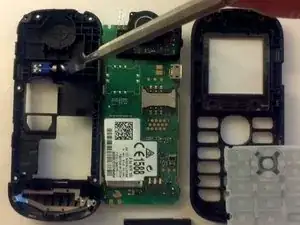

The main board, which holds the button board and the screen can easily lift out of the front shell.
-

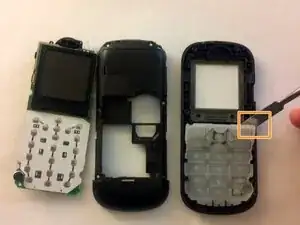

Remove the silicone button membrane using a finger or a spudger.
-
-
-

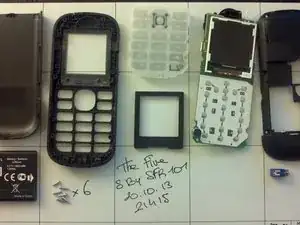

Congrats! You have made it to the end of this dissasemby. Now to assemble it back together...
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
