Disassembling Motorola i90c Keypad

Written By: Jorge
  • Comments: 0
Disassembling Motorola i90c Keypad

Difficulty

Easy

Steps

10

Time Required

20 - 35 minutes

Introduction

Today we are going to take you to a step by step guide on how to install a new keypad.

  1. B3sbjw4XfDPB3fU4
    B3sbjw4XfDPB3fU4
    soyvh4SFRYTJJmbX
    kQokZdYQqTCIV3sO

    • Slide the notch downward while pulling the back cover off to remove it.

  2. FYQZGnC5CVIoEHJY
    FYQZGnC5CVIoEHJY
    5tOoqOlfKhhmNMCJ
    axvZcFdMFsZUOPlQ

    • Use your fingers to push the battery upward from the bottom.

    • Lift upwards to remove the battery.

  3. hwGeEUCq1SWp1PFO
    hwGeEUCq1SWp1PFO
    AMsWkdq2vRbA1xhc

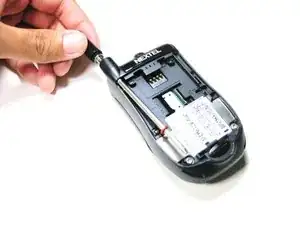

    • Unscrew the antenna in a counter-clockwise fashion.

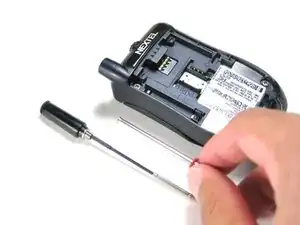

    • Remove the aluminum cover.

  4. xmdGvJIgVFcl1lHQ
    xmdGvJIgVFcl1lHQ
    wVT6HHywnIt1QdhM
    eXmIjxYrHeUWNrHH

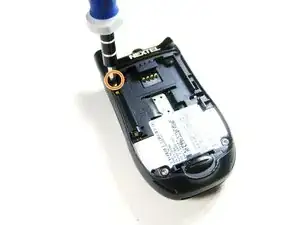

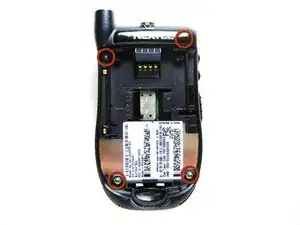

    • Unscrew the 3 screws shown.

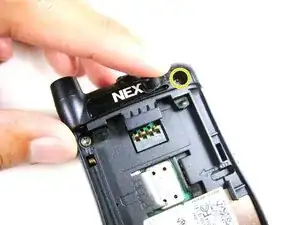

    • Lift the right part of the Nextel logo

    • Remove the screw underneath.

  5. 6Vs6TlIDFHlG3mA4
    6Vs6TlIDFHlG3mA4

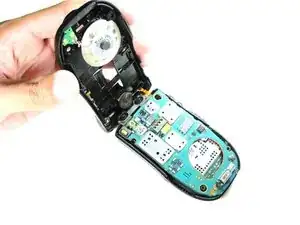

    CkbgjRhIABOuONSR

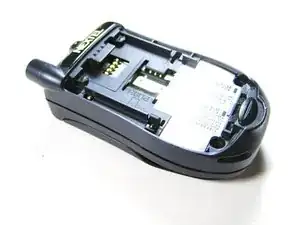

    • Forcing the cover off could damage the ribbon cable, so be careful when doing so.

    • Gently lift the back cover off.

  6. blfeRuswFEGVsVQN

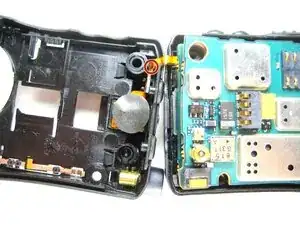

    blfeRuswFEGVsVQN

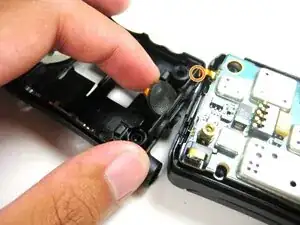

    3gdk3mlOdkvJbx4Y

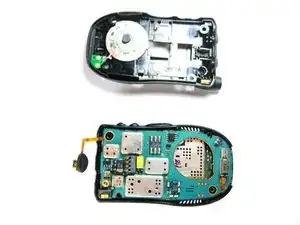

    p1rJLQsNwZndaV5g

    • Find the connection between the headphone jack and logic board.

    • Begin separating the two pieces, slowly and carefully.

  7. ky2MGU4ZJIfA5Qle
    ky2MGU4ZJIfA5Qle

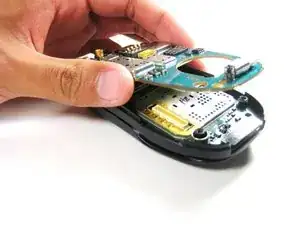

    loNvOY6aEqfyja1H

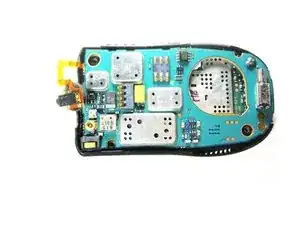

    • Lift the first logic board off of the rest of the device.

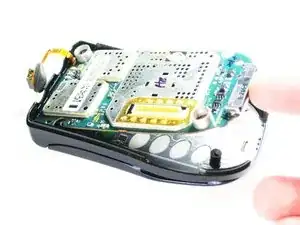

  8. alMnXFkPNjktXI6K

    • Gently lift the second logic board from the rest of the device.

    • DO NOT force the board straight off as it could damage the ribbon cable!

  9. UQYIpSVXlLBjoJt3
    UQYIpSVXlLBjoJt3

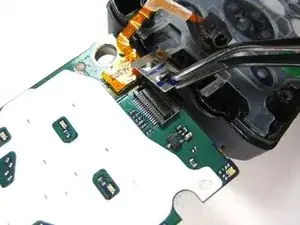

    ISWLimHOnck1QDpk

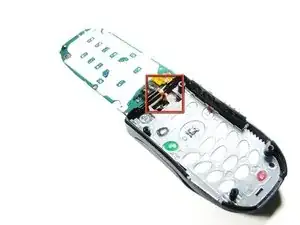

    • Using tweezers, carefully pull off the connector shown.

  10. qYAPn4WmV4Cycvk5
    qYAPn4WmV4Cycvk5
    m1Q1dGCnGFw2Kgbh

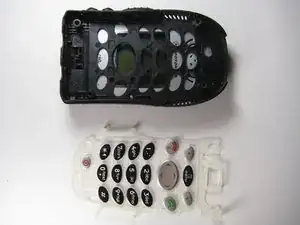

    bsuIurQh4VpEFCVl

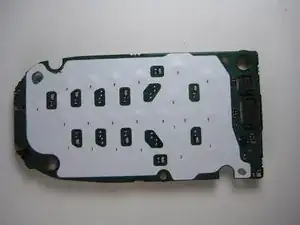

    • Remove the keypad buttons off the front cover of the phone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
