Disassembling KDDI Kyocera A5521K Main LCD Screen

Pry, with a metal probe, the black covers that are located by the pivoting joints of the phone.

Beneath the covers are screws.

Remove the screws using a Y0 screwdriver.

Use the iPod pry tool to remove the outer screen.

Two screws are now visible.

Use the Y0 screwdriver to remove the screws.

Use the iPod pry tool to loosen the faceplate from the phone.

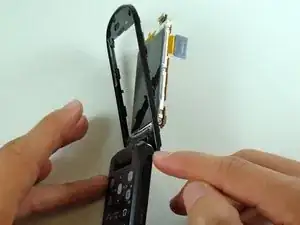

Separate the faceplate from the phone.

Firmly grab the flexible circuit with tweezers to detach (or use your fingers if you can manage a firm grip).

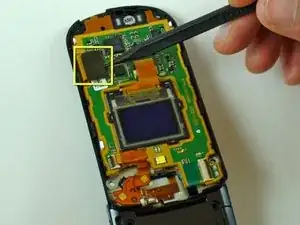

Carefully pry up the camera unit with a spudger.

The camera should now be separated from the phone.

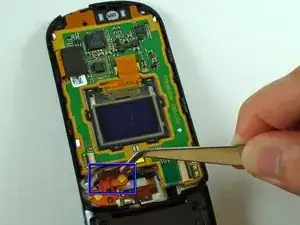

Remove the flexible circuit shown using tweezers (or use your fingers if you can manage a firm grip).

Unplug the circuit connector.

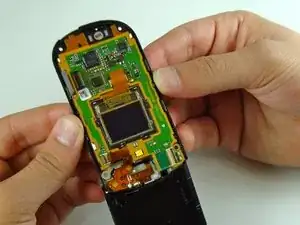

Grab the phone with both hands.

Turnover the phone so that the main screen faces you.

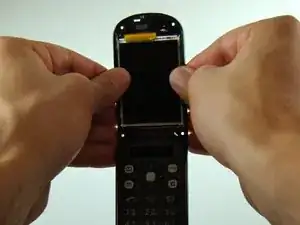

Firmly grasp the edges between your thumbs and fingers.

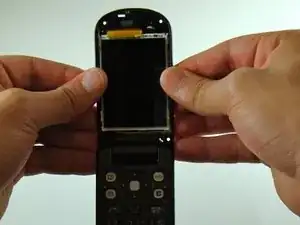

Carefully push in the LCD screen from the remainder of the phone.

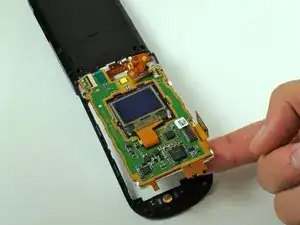

The LCD screen and circuit board should now be partly detached from the frame.

Turn over the phone.

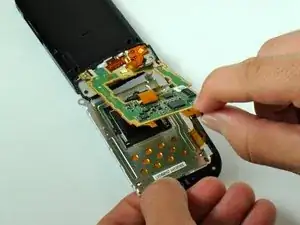

Separate the circuit board from the back of the LCD screen.

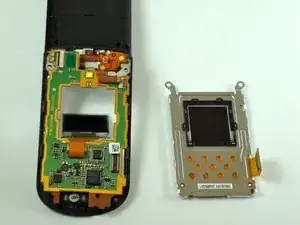

Remove the LCD screen from the phone.
