Disassembling Garmin Nuvi 1200 Logic Board

Written By: Zachary Landau
  • Comments: 0
Disassembling Garmin Nuvi 1200 Logic Board

Difficulty

Easy

Steps

6

Time Required

15 - 30 minutes

Introduction

This guide shows how to fully disassemble a Garmin Nuvi 1200 to replace the logic board.

  1. HhNgEJiXRjAY5K3y

    • Remove to sticker on the back of the unit and then remove the two T5 scremws once this is done use a spudger to carefully pry off the silver cover.

    • Once the tool is inserted it can slide around the entire device.

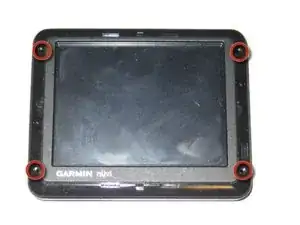

  2. xKjWvMvOw1RsVNWA

    • Remove four small T5 torx screws.

    • Be gentle, the screws are easily stripped.

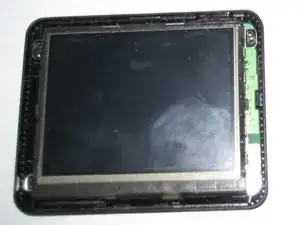

  3. HTo6RoLWtyMgwUB3
    HTo6RoLWtyMgwUB3
    bmbOBThOJvDLsWYW

    • Lift cover off of unit.

    • Be careful not to lose small rubber piece on the bottom right corner.

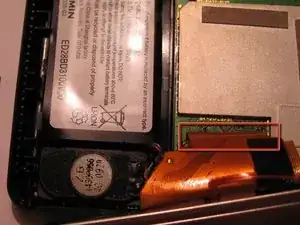

  4. 2JAkNGRVXDpBdsyD

    • Disconnect ribbon cable from logic board.

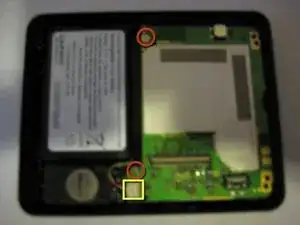

  5. hWJRXDvmWh1tXLLU

    • Remove two T5 torx screws holding down logic board.

    • Disconnect battery.

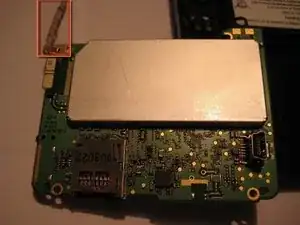

  6. EACHQ1nx62u2nUPI

    • Gently lift the logic board out of the unit

    • Be careful not to damage the battery connector on the top of the unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
