Dexter Wired Belt Sander - 900BS2.5 Replacement Power Cable

Written By: Céline Chemineau
  • Comments: 0
Dexter Wired Belt Sander - 900BS2.5 Replacement Power Cable

Difficulty

Easy

Steps

11

Time Required

5 minutes

Introduction

  1. aCJdEGwIBU5obRIn

    • Before you start, remember to disconnect the outlet from the mains.

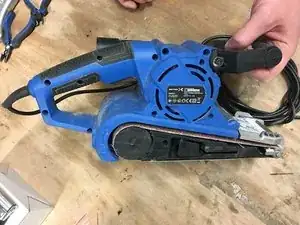

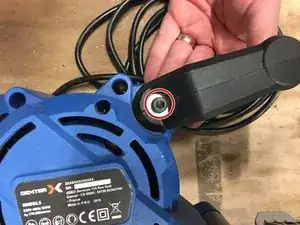

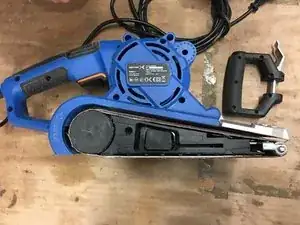

  2. 25DnMbYVuodxVsst
    25DnMbYVuodxVsst
    26DRJpmkitRZcaG6
    PAFtEOV1CDSaHfZk

    • Remove the handle, unscrewing the screw.

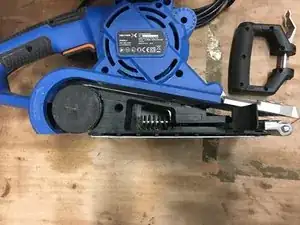

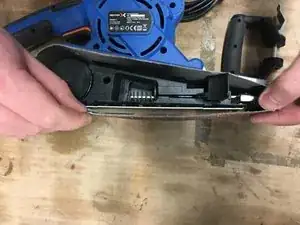

  3. enPbGIplvNptR21K
    enPbGIplvNptR21K
    L6JeABL6qe3jIQAA

    • Pry the tape off.

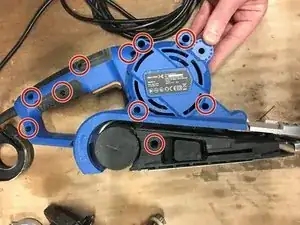

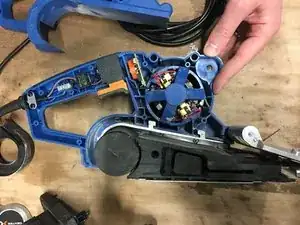

  4. rF63ZOZ1wpaqmqBM
    rF63ZOZ1wpaqmqBM
    tu14XLSjdjLfDbLI

    • Unscrew the screws to open the hull.

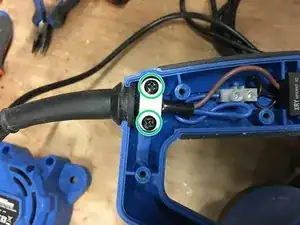

  5. 2ULqhPKhgCTVNaGY

    • Remove the two screws that block the cable.

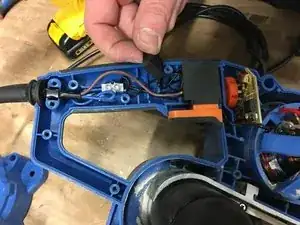

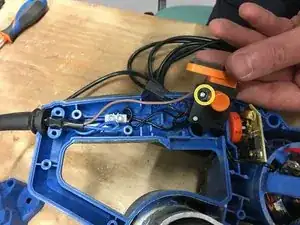

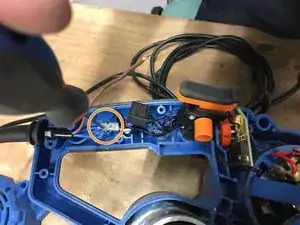

  6. IslTfViKZdXliSOv
    IslTfViKZdXliSOv
    JfFaARCWmhTSE5Oc
    RDoMVPhStLTuFPnY

    • Release the brown cable.

    • Unscrew the screw on the domino.

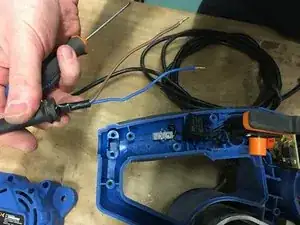

  7. 2S3SjumMH4iHUNBc
    2S3SjumMH4iHUNBc
    UFZViPhgVuBLg5Ng

    • Then release the blue cable.

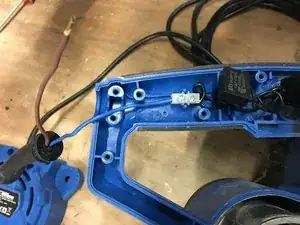

  8. 2yXIEG3ADuXh35Hq

    • Remove the old cable and replace it with the new one.

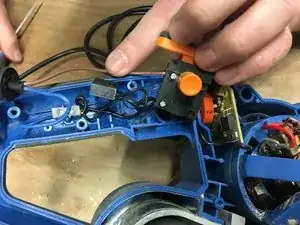

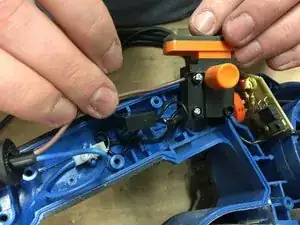

  9. VZCi5RTf4e3yMyPK
    VZCi5RTf4e3yMyPK
    ZyEsCG4gb36fYsbm

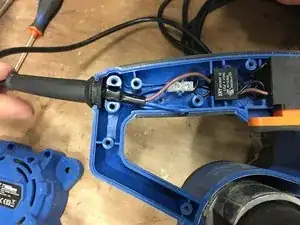

    sXdK1HUaT6J5KPLF

    • Put the cables back in their place and screw the domino and switch. Then put each room back into their home.

    • The brown cable must be positioned below.

  10. oJTMCuE2Zd2vtMGB

    • Close and screw the device.

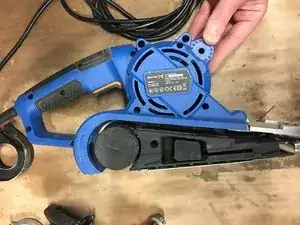

  11. VYWPsgBmdi1MG5rI
    VYWPsgBmdi1MG5rI
    IRIAPV1BwDvuuXYT

    • Replace the band and handle.
