Introduction

This guide will show you how to replace your power cable

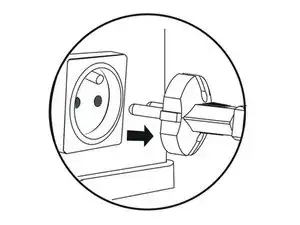

  1. KmMKdbo3reKOPsOX

    • Before you begin, remember to disconnect the mains plug.

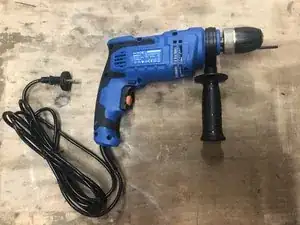

  2. gRyTTqQtol5P14Jj
    gRyTTqQtol5P14Jj
    MxFQQmfcRJQLXlNy

    • Remove the handle from the machine.

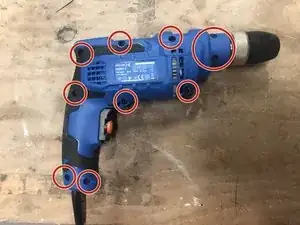

  3. sgFBouRy62l3eOrN
    sgFBouRy62l3eOrN
    KCLxTxRIhsKaknQm

    • Using a screwdriver or screwdriver, unscrew and open the device.

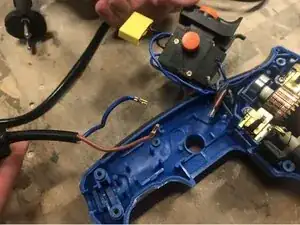

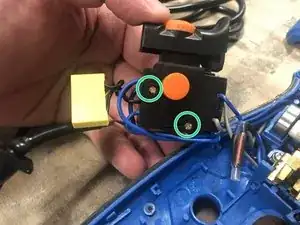

  4. FKFTSeVmXPhF6m1Y
    FKFTSeVmXPhF6m1Y
    AOneRTryl1tqSJS5

    • Lift the switch and unscrew the screws to release the cable.

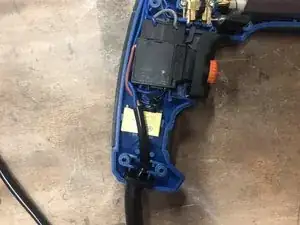

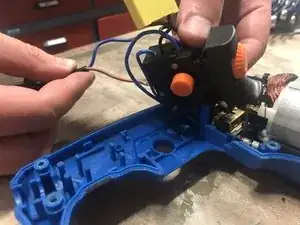

  5. Hn2LbPT32ZW4nTOO
    Hn2LbPT32ZW4nTOO
    GNMRvQDS3eIjXDxa

    • Replace the new power cable and connect the cables to the switch.

    • Replace the switch in its housing.

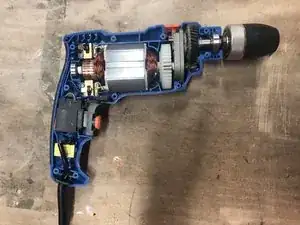

  6. ZnptBGZLBKWXEFTH
    ZnptBGZLBKWXEFTH
    5iWJOxf5x5Nh4DMa

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Tighten the screws to close the device.

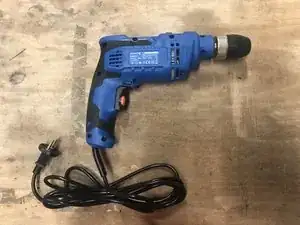

  7. PfFkCpjiGLHChyMI
    PfFkCpjiGLHChyMI
    A2rCuauUU4S2sO1p

    • Finally replace the handle.

Conclusion

To reassemble complete steps in reverse or complete guide
