Introduction
Tools
-

                  -
            Place an opening tool in the groove line of the handle and pop the back loose.
-
            Grab the drill with two hands and pull the cover off.

-

-

                  -
            Firmly grab the body of the trigger.
-
            Slowly pull the trigger until the entire body is out and only attached by wires.

-

-

                  -
            With a pair of blunt nose tweezers, grab the white wire.
-
            Carefully wiggle the wire loose.
-
            Pull the wire slowly until it comes out.

-

-

                  -
            Use an opening tool to lift up the spring holding down the brush.
-
            Remove the brush from its holding.

-

-

                  -
            Grab the gear case cover and gently pull it out just enough to where it exposes the lever assembly.
-
            The lever assembly can now be lifted out.

-

-

                  -

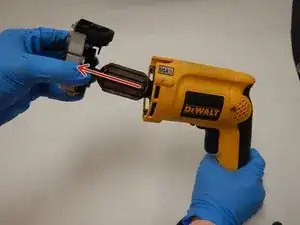

            Hold the hammer drill tool firmly by the handle.
-

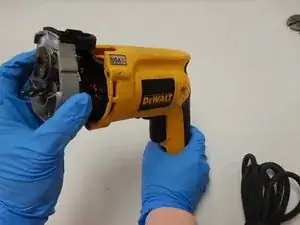

            Gently separate the gear case unit from the hammer drill body.

-

To reassemble your device, follow these instructions in reverse order.
