Dell XPS M1530 RAM Replacement

Written By: Jase Sasaki
  • Comments: 0
Dell XPS M1530 RAM Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 10 minutes

Introduction

If you would like to upgrade your RAM or if your RAM has malfunctioned, you should pull the chip out and replace it with the desired chip.

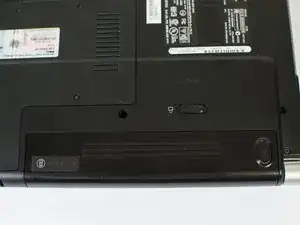

  1. wJatXlL6lrCdmwuW

    • Turn the computer upside down with the battery facing you.

    • Turn the computer off and disconnect the charging cable from the computer.

    • Failure to unplug the charging cable may result in electric shock.

  2. IhXR2NZjDY36TLsM

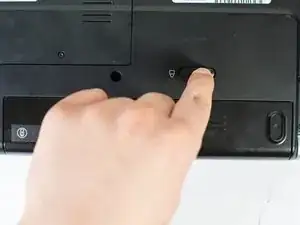

    • Push the switch as far to the right as possible to unlock the battery.

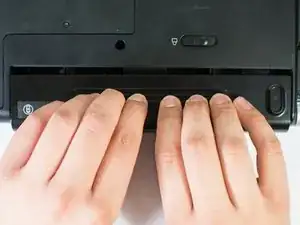

  3. k2jFPu3PqITRYlKx
    k2jFPu3PqITRYlKx
    ENTx41oNDixCGAvy

    • Remove the battery using two hands and pull it away from the computer.

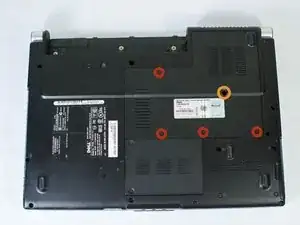

  4. 5VXpVGLhasCMFa5Q

    • Unscrew the four Phillips #1 screws holding down the back panel. Then remove one 5.8mm Phillips #1 screw labeled "M" in the middle of the back panel.

    • Four 3.9mm Phillips #1 screws

    • One 5.8mm Phillips #1 screw

  5. 5ToYFXhCGEQltonH
    5ToYFXhCGEQltonH

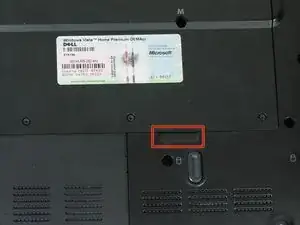

    cyMZRmeF2igB62Sn

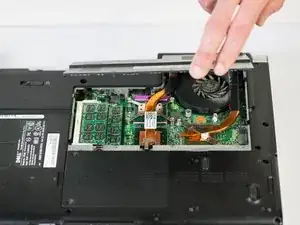

    • Using the highlighted indent, pull up and out to remove the back panel.

    • The indent should provide enough grip to remove the panel with ease.

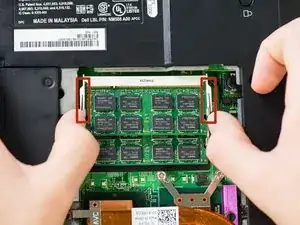

  6. Hrq5HTXFEw6OqN3i
    Hrq5HTXFEw6OqN3i

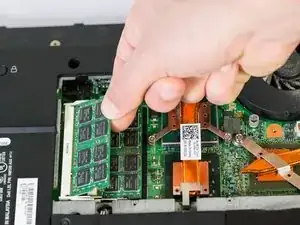

    MaRM3ZIkUIPoEjos

    • Push out on the first set of metal tabs to release and remove the top RAM chip.

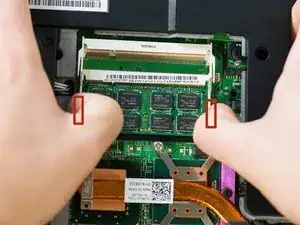

  7. s55LpekHO1RbAr3U
    s55LpekHO1RbAr3U

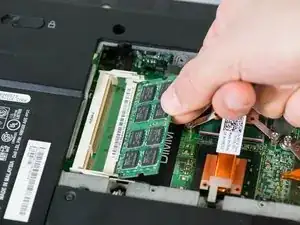

    cE3MGRyO35IxcD2L
    DugYIwWL2HKIBUNK

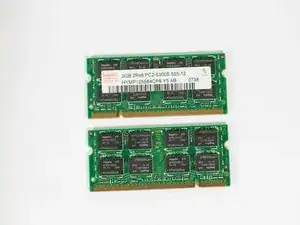

    • Push out on the second set of metal tabs to release and remove the lower RAM chip.

Conclusion

To reassemble your device, follow these instructions in reverse order.
