Dell Vostro V131 Hard Drive Removal

Written By: Johnathan Hammond
  • Comments: 0
Dell Vostro V131 Hard Drive Removal

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

  1. RrODSW4ilqdvkyU6
    RrODSW4ilqdvkyU6
    VRiXDFRKRKRGQnhP

    • Slide the release latches to unlock the battery.

    • Remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  2. ZSktZvPa3P4Njai5

    • Remove the screw that secures the hard drive in place.

  3. PaoO6Mjr1RIXDQo4

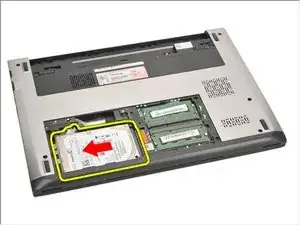

    • Slide the hard drive module to the left.

  4. fOOyKjAmHUqeQe6f

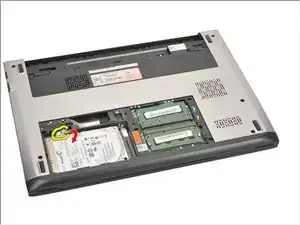

    • Carefully pry up and remove the hard drive from the computer.

  5. 3jv1X6Y62HUuEk4L

    • Remove the screws which secure the hard-drive bracket to the hard drive. Separate the hard drive bracket from the hard drive.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.
