Dell Vostro 5470 Hard Drive Replacement

Written By: Johnathan Hammond
  • Comments: 0
Dell Vostro 5470 Hard Drive Replacement

Difficulty

Easy

Steps

8

Time Required

3 - 6 minutes

Introduction

  1. cTroisAZnuCeWoUJ

    • Remove the screws that secure the base cover to the computer.

  2. hMclTptMlIEg54Er

    • Pry the base cover along the edges to loosen it.

  3. uYSbQrN5WUXTLaf2

    • Lift and remove the base cover from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  4. RLFZFvTNwHTaHwEF

    • Disconnect the battery cable from its connector on the system board.

  5. 1cfDJ1daagF2qoHg

    • Release the tabs that secure the battery in the battery bay.

  6. mxSfNXev5WVJffrq

    • Lift and remove the battery from the computer.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

  7. eIB3mnpJVduvhDQn

    • Lift the hard drive assembly in an upward direction to release it from its compartment on the computer. Remove the hard drive from the computer.

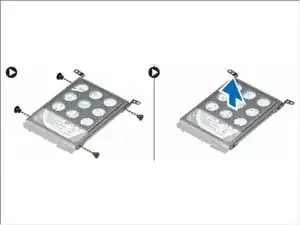

  8. xZgqBUh4pXDEBDFe

    • Remove the screws that secure the hard drive to the hard drive assembly.

    • Lift and remove the hard drive from the hard drive assembly.

    • If this is all you are doing Follow Step In Reverse if not Go to Next Step.

Conclusion

To reassemble your device, follow these instructions in reverse order.
