Dell Vostro 3510 CPU Fan Replacement

Written By: Jhoan Cruz
  • Comments: 0
Dell Vostro 3510 CPU Fan Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

When a laptop overheats, one of the biggest reasons could be that the fans died.

  1. ALIvrtMStHF54C6i
    ALIvrtMStHF54C6i
    cnMJgl6obJbAqYHg

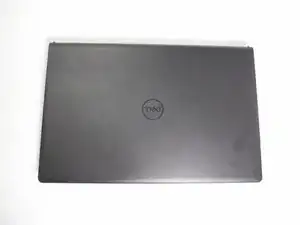

    • Ensure the laptop is powered off.

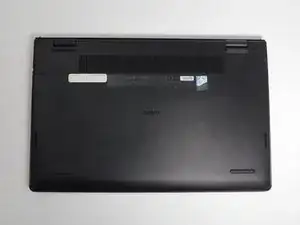

    • Flip the laptop over.

  2. dLeXKwqGonTyqAjY

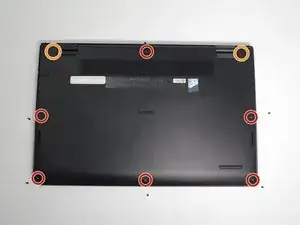

    • Use a Phillips #0 screwdriver to remove the six 1 mm screws (circled in red).

    • Loosen the two captive 1 mm screws on the back corners.

    • Keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your laptop

  3. mB3WT1RdkY6DLrNE
    mB3WT1RdkY6DLrNE
    DQbHgwyv4IlJoLyL

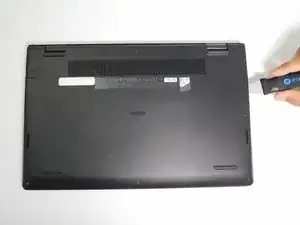

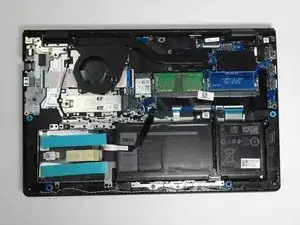

    • Open up the back cover of the laptop.

    • It is much easier to open up the laptop with any type of spudger or with Jimmy.

  4. jymjAvnEVMPBD2m1

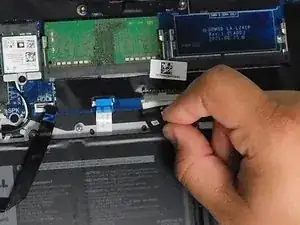

    • Remove the battery cable from the motherboard by lightly pulling on the black tape attached to the ribbon cable.

  5. EXAwkRADW6ZaTtfG
    EXAwkRADW6ZaTtfG
    43hFqPMrSD54EoV3
    RtVFGaQJa2DGk621

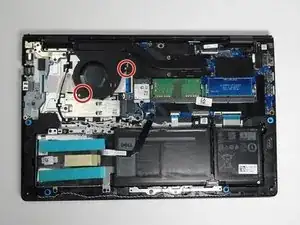

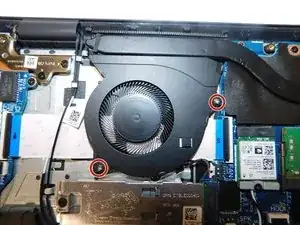

    • Use a Phillips #0 screwdriver to remove the two 1 mm screws that secure the CPU fan.

  6. bprsUhktHlvObCMB
    bprsUhktHlvObCMB
    isONi61ZZFpq6LF3

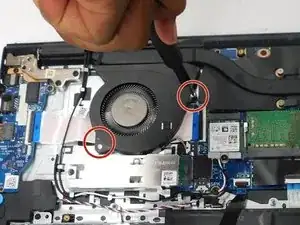

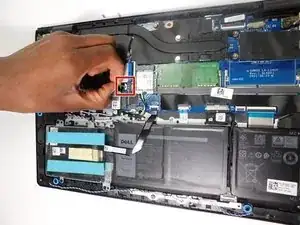

    • Gently pull the fan cable out of its socket.

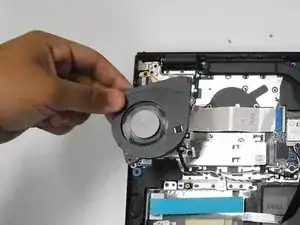

    • Safely remove the CPU fan.

Conclusion

To reassemble your device, follow these instructions in reverse order.
