Dell Vostro 3460 Memory Module Replacement

Written By: Johnathan Hammond
  • Comments: 0
Dell Vostro 3460 Memory Module Replacement

Difficulty

Moderate

Steps

6

Time Required

6 - 15 minutes

Introduction

In this guide, we will show you how to remove and replace the Memory Module.

  1. PLPu6fw6Q4efAnv1

    • Slide the battery latches to release the battery.

  2. MqOoPVPelmbQPrmo

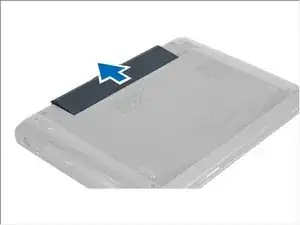

    • Lift and remove the battery from the computer.

  3. tkZFnSUg4plgioSi

    • Remove the screw(s) that secures the cover to the computer. Lift the cover upwards.

  4. 6qGVcy6GOYpOTREb

    • Slide the cover outwards to release it from the notches on the computer.

  5. r6fHPr4e1dXoQCUr

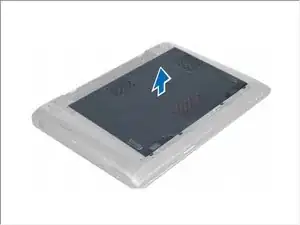

    • Lift the cover upwards and away from the computer.

  6. LCNQN5ND3dxOvnAW

    • Pry the retention clips away from the memory module until it pops-up. Lift and remove the memory module from its connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
