Dell Vostro 1440 KeyBoard Replacement

Difficulty

Easy

Steps

5

Time Required

6 - 15 minutes

Introduction

  1. YESLxj1KaR6waodx
    YESLxj1KaR6waodx
    ArdiGRfIASxxGZYa

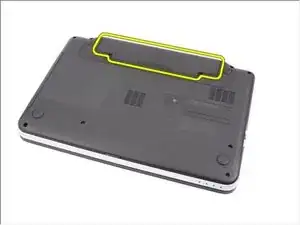

    • Slide the release latches to unlock the battery.

    • Slide the battery and remove it from the computer.

  2. 6VVSZWFhX5StlNTp

    • Pry up to release the top four snaps securing the keyboard to the computer.

  3. C4ftHRd4xywWGiG2

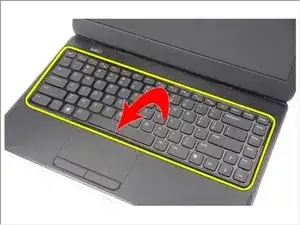

    • Flip the keyboard over and lay it on the palm rest.

  4. GOM1qWtscdgvWDGS

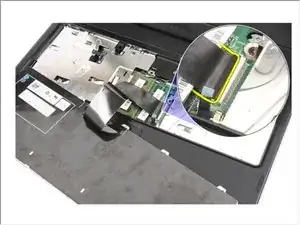

    • Disconnect the keyboard cable from the system board.

  5. bUu2xB4YR4kcLE3q

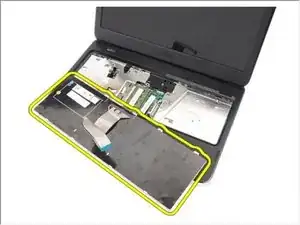

    • Remove the keyboard from the computer.

    ESC,1,2,4,5,8,10,11,12,s

    BIPAL HALDER -

Conclusion

To reassemble your device, follow these instructions in reverse order.
