Dell Precision M6600 RAM Replacement

Written By: Kaley lindsay
  • Comments: 1
Dell Precision M6600 RAM Replacement

Difficulty

Moderate

Steps

3

Time Required

10 minutes

Introduction

  1. LFqDcahOVu4bwGEO

    • Slide the lock key to unlock the battery. Then you can lift the battery from its holder.

  2. 4LTPhdJcXfyVgncZ
    4LTPhdJcXfyVgncZ
    IWGYoAAoZuhkmewo

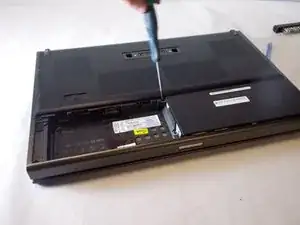

    • There are two 1.5mm screws that will be taken off using a Phillips #00 screw driver.

  3. KbhuJSEUR5bCL3GQ
    KbhuJSEUR5bCL3GQ
    ebhnmxXpuje25Jgw

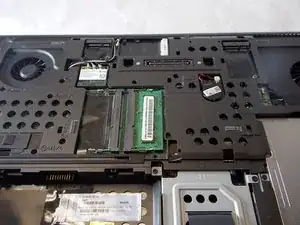

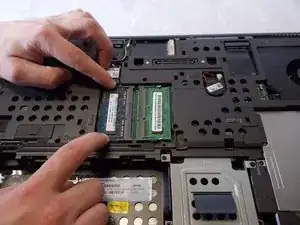

    • The RAM is held in place by two prongs. By pulling the two prongs lightly away from the chip the RAM is able to be pulled out.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Kaley lindsay

Member since: 23/03/18

582 Reputation

One comment

You forgot to show the two more RAM slots under the keyboard.

Xerkies -
