Introduction
Tools
Parts
-

                  -

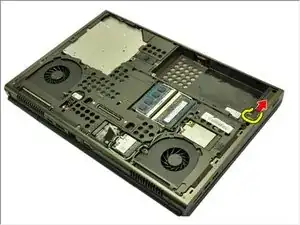

            Slide the battery release latch into the unlock position.
-

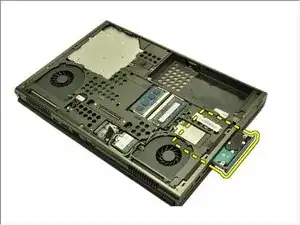

            Remove the battery from the system.

-

-

                  -
            Remove the screws that secure the base cover to the computer.
-
            Press the rubber feet towards the rear of the system to disengage the bottom door.
-
            Remove the base cover from the computer.

-

-

                  -
            Remove the screws securing the hard drive bracket in place.
-

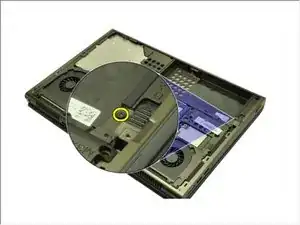

            Remove the screw securing the hard drive latch in place
-
            Slide the hard drive release latch into the unlock position.

-

-

                  -
            Remove the hard drive bracket from the system.
-

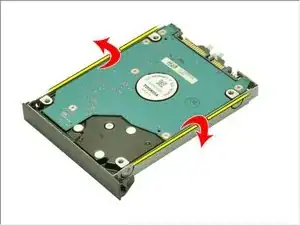

            Flex the hard drive bracket outward and press the hard drive upwards from the bottom.
-

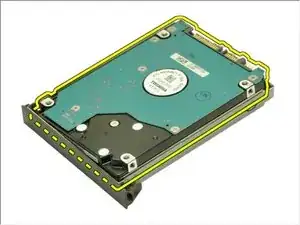

            Remove the hard drive from the hard drive bracket.

-

To reassemble your device, follow these instructions in reverse order.
