Introduction
-
-
Slide the release latch to unlock the battery cover [1].
-
Slide and lift the battery cover to remove it from the computer [2].
-
-
-
Slide the release latch to unlock the battery [1].
-
Lift and remove the battery from the computer [2].
-
-
-
Lift the tab and disconnect the 4 cables, one of the cables may be obstructed by the HDD, so you will need to unscrew/detatch the HDD tray first [1, 2].
-

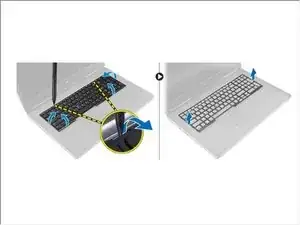

Pry the keyboard trim starting from the bottom and work along the top edge and remove it from the computer.
-
-
-

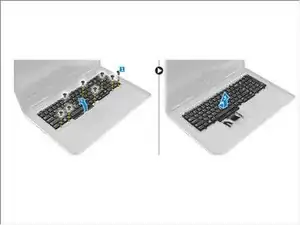

Remove the screws that secure the keyboard to the computer [1].
-
Lift the front side and slide the keyboard to remove it away from the computer [2, 3].
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
This should be step 1
