Introduction
Tools
Parts
-
-
Slide the release latch to unlock the battery [1].
-
Lift and remove the battery from the computer [2].
-
-
-
Slide the release latch to unlock the battery cover [1].
-
Slide and lift the battery cover to remove it from the computer [2].
-
-
-
Remove the screws that secure the hard drive to the computer [1].
-
Lift the hard-drive latch to the unlock position [2].
-
Slide and lift the hard drive from the computer [3].
-

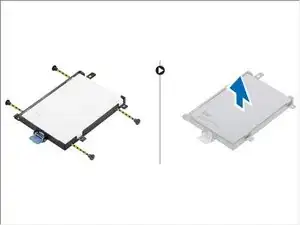

Remove the screws that secure the hard drive. Lift the hard drive from the bracket.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
