Dell Precision 7520 KeyBoard Replacement

Written By: Johnathan Hammond
  • Comments: 1
Dell Precision 7520 KeyBoard Replacement

Difficulty

Easy

Steps

6

Time Required

15 - 30 minutes

Introduction

  1. g3EsXWooR4qj2aWc

    • Slide the release latch towards the unlock icon to release the battery cover [1].

    • Slide and lift the battery cover to remove it from the computer [2].

  2. Ewq1AEdRnTAAfdyx

    • Slide the release latch towards from the unlock icon to unlock the battery[1].

    • Lift and remove the battery from the computer [2].

    It should be noted, if you need to get to ONLY the two primary DIMM slots. DO NOT DO THIS STEP - STEP 6! They are not necessary! Remove the two screws on the left and right of the top panel and slide it upwards away from you, the panel will come right off, giving you what you see in step 7. If you are adding 4 RAM modules, then yes, do all steps in this guide, as DIMMS 2 and 3 are under the keyboard.

    Nater Tater -

  3. PqlwGaSZkuUNPMRH

    • Remove the M3.0x3.0 screws that secure the hard drive to the computer [1].

    • Lift the hard drive latch to release the hard drive [2].

    • Slide and lift the hard drive from the computer [3].

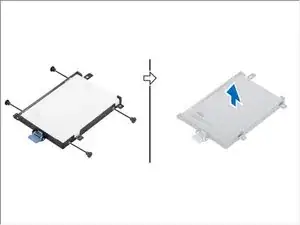

  4. EhBKN5FD3xQAvv3I

    • Remove the M3.0x3.0 screws that secure the hard drive. Lift the hard drive from the bracket.

  5. r14lDHcT5YDgFUpk

    • Peel the tape to access the keyboard cable [1].

    • Disconnect the keyboard cables from the system board [2]

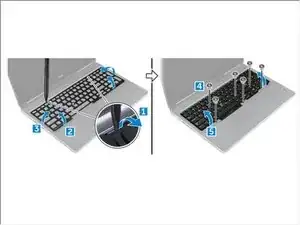

  6. KSOS1JxfWxlpooOf

    • Using plastic scribe pry the keyboard trim from the bottom and work along the top edge and remove it from the computer [1, 2,3].

    • Remove the M2.0x2.5 screws that secure the keyboard to the computer [4].

    • Lift and slide the keyboard to remove it away from the computer [5].

Conclusion

To reassemble your device, follow these instructions in reverse order.
