Dell Precision 5510 Screen Replacement

Written By: Atlanta Phelps
  • Comments: 2
Dell Precision 5510 Screen Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes

Introduction

These are the steps to remove the screen from the Precision Dell 5510, see the prerequisites for the back removal.

  1. fJufTEJVWRqVU2Ne

    • Open the system badge flap over to reveal the screws underneath (marked 1 on the image).

    • Remove the 12 screws that secure the base cover to the computer.

    According to the owner’s manual at https://www.dell.com/support/manuals/en-..., most of the screws for the base cover are Torx #5 with a couple of Phillips #0 under the badge flap.

    KCMax -

  2. uUAIrfDAT4xfPB5A

    • Pry the edges base cover and lift it to remove it from computer.

  3. RiLqrHWGOJmPREwi
    RiLqrHWGOJmPREwi
    vBfMpBiqywOSFwXY

    • Unplug the connection that links the battery to the computer.

  4. rjVem3IIKoUIo2MZ
    rjVem3IIKoUIo2MZ
    sWmNSMptxQyVKpOr

    • Remove the four 4.0 mm JIS #0 screws surrounding the battery.

  5. DucwQ1cvSUZ3L2A1
    DucwQ1cvSUZ3L2A1
    4nTat22ECfIZXWaJ

    • Carefully remove the battery from the computer.

  6. lWbNyYLgmxRWBliv
    lWbNyYLgmxRWBliv
    ltIdeWysFBZxYNHT

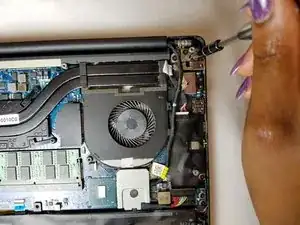

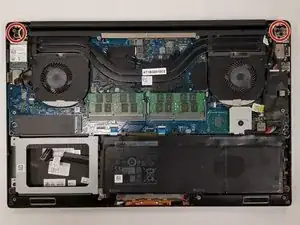

    • Remove the six 4.0 mm Phillips #1 screws.

  7. otPKb512WsNxmZP6
    otPKb512WsNxmZP6
    Rreo6JGvAV4qMNGU

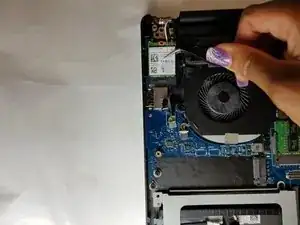

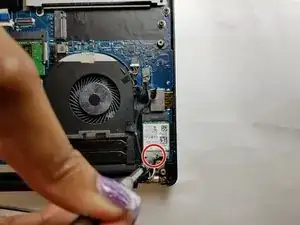

    • Unscrew the one 4.0 mm Phillips #1 screw from the WiFi chip, then remove it.

  8. STragCvCg2gEinhR
    STragCvCg2gEinhR
    H1tjeUaqlJZSILBi

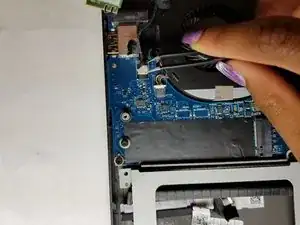

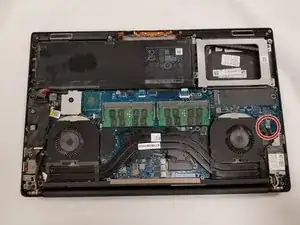

    • Disconnect the black wire. Use tweezers to help.

  9. GmdWMEcQioMIuiiP
    GmdWMEcQioMIuiiP
    dPHGWg2mFHgRxZuy

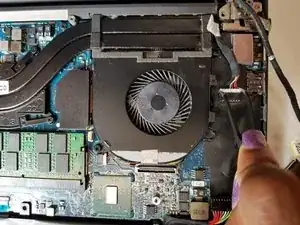

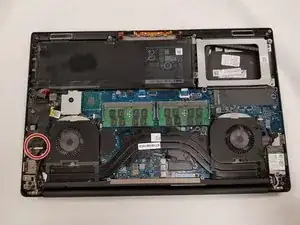

    • Disconnect the multi wire. Use tweezers to help.

  10. UOXirdrleXAOdpYe
    UOXirdrleXAOdpYe
    5TnuRMWjTei6kh2Y

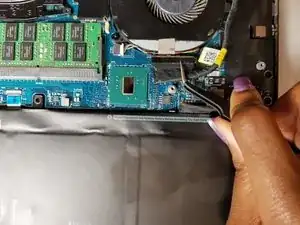

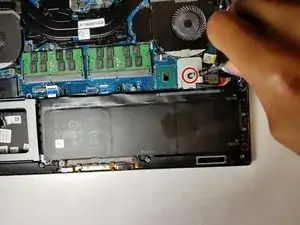

    • Remove the 1.0 mm Phillips #1 screw.

  11. kQ1MkhqurQUklTER
    kQ1MkhqurQUklTER
    35lP1OQ3MEXDPeZV

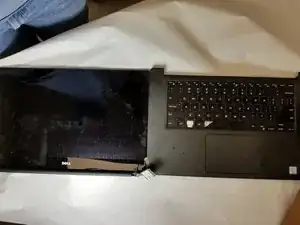

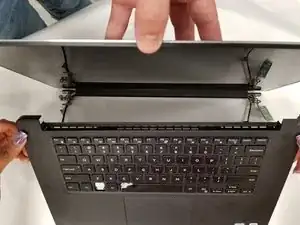

    • Flip the laptop over, so it is sitting in the normal upright position. Hold onto the screen, and pull the keyboard up and away from the screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Atlanta Phelps

Member since: 28/08/18

400 Reputation

One comment

Can I just change the LCD? Or is changing the entire display assembly the only option?

John Gaines -
