Dell Precision 5510 Battery Replacement

Written By: Atlanta Phelps
  • Comments: 2
Dell Precision 5510 Battery Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

These are the steps to remove the battery from the Precision Dell 5510.

  1. fJufTEJVWRqVU2Ne

    • Open the system badge flap over to reveal the screws underneath (marked 1 on the image).

    • Remove the 12 screws that secure the base cover to the computer.

    According to the owner’s manual at https://www.dell.com/support/manuals/en-..., most of the screws for the base cover are Torx #5 with a couple of Phillips #0 under the badge flap.

    KCMax -

  2. uUAIrfDAT4xfPB5A

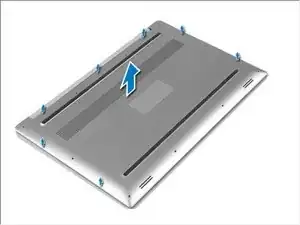

    • Pry the edges base cover and lift it to remove it from computer.

  3. RiLqrHWGOJmPREwi
    RiLqrHWGOJmPREwi
    vBfMpBiqywOSFwXY

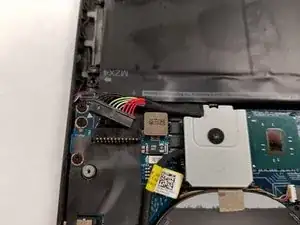

    • Unplug the connection that links the battery to the computer.

  4. rjVem3IIKoUIo2MZ
    rjVem3IIKoUIo2MZ
    sWmNSMptxQyVKpOr

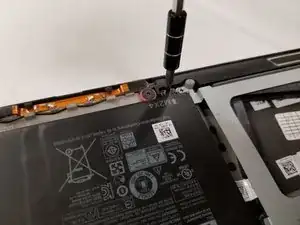

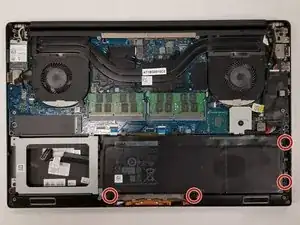

    • Remove the four 4.0 mm JIS #0 screws surrounding the battery.

  5. DucwQ1cvSUZ3L2A1
    DucwQ1cvSUZ3L2A1
    4nTat22ECfIZXWaJ

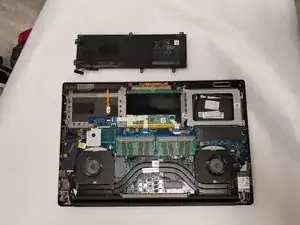

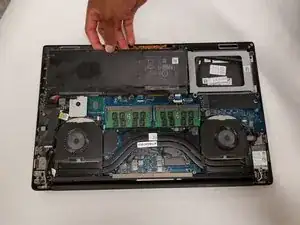

    • Carefully remove the battery from the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
