Dell Optiplex SX280 Optical Drive Replacement

Written By: Tom
  • Comments: 0
Dell Optiplex SX280 Optical Drive Replacement

Difficulty

Moderate

Steps

5

Time Required

5 minutes

Introduction

Replace the Optical Drive in the computer tower to allow the Optiplex to read CD's and DVD's

  1. Mo6KBxBWPCMRqxCR

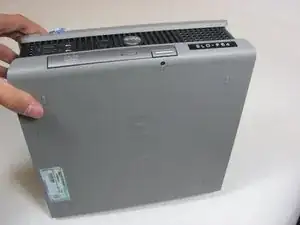

    • Position the tower with the Optical Drive facing upward.

  2. 5DZVAD6wrlrK4mtT
    5DZVAD6wrlrK4mtT
    PyQeyPwMW4GX2PB2

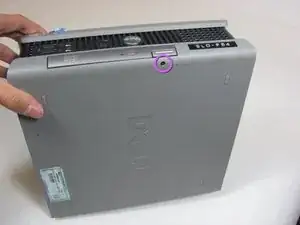

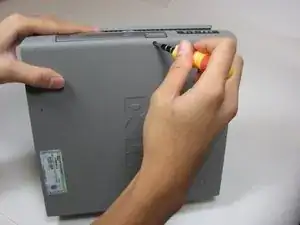

    • Remove the small black screw connecting the Optical Drive to the computer.

  3. 1HC4CGk2RhGbiHFo

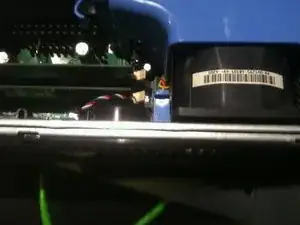

    • There is a little blue tab you have to disengage, inside of the case, to be able to pull the DVD drive out. Simply pull it up to release the DVD.

  4. GnKWGqKtFnkIBHCH
    GnKWGqKtFnkIBHCH
    CrCHohMFMQjVkpik

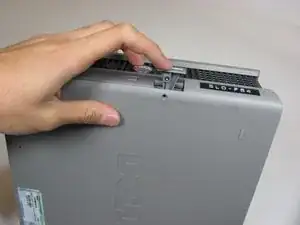

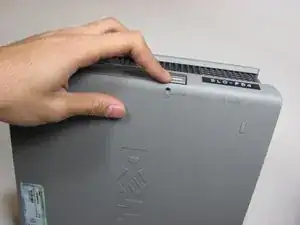

    • Press on the drive release button.

  5. yLdLLwBUPs4EHYSV

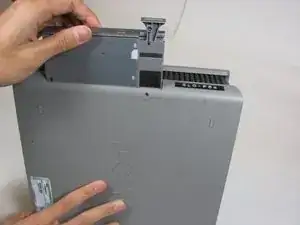

    • Pull Optical Drive out of the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
