Dell Netbook e6400 Backup Battery Replacement

Written By: Smilzo
  • Comments: 0
Dell Netbook e6400 Backup Battery Replacement

Difficulty

Easy

Steps

4

Time Required

15 minutes

Introduction

  1. uagaaetJX33tATMT

    • remove battery

  2. RnnYZDIvkvS4LnNI

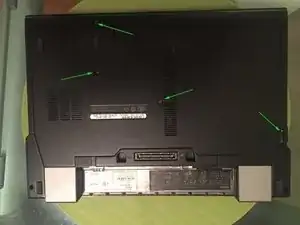

    • Remove the screws marked by the green arrows

    • Slide the protection on the opposite side of the battery to release it

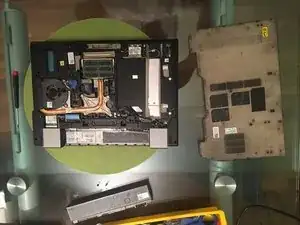

  3. Nw15vDivhyD5GDgG

    • Remove lower protection

  4. AdMvXXIUrX1TgSUM
    AdMvXXIUrX1TgSUM
    ufAwvaYuWHtFEWtQ
    BquFBakkDq6REgPs

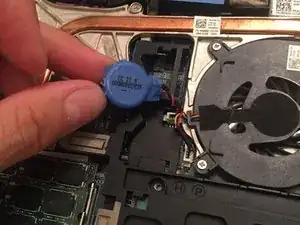

    • Unclip the battery connector

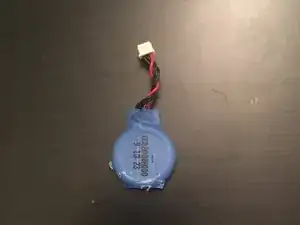

    • Remove the battery and replace it with a new one

Conclusion

To reassemble the device, follow these instructions in reverse order.
