Dell Latitude X300 Screen Replacement

Written By: Jacob
  • Comments: 0
Dell Latitude X300 Screen Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

  1. D5Q3S4jK6kiU4IOw

    • Make sure the Dell Latitude X300 power is off.

    • Remove the battery located on the bottom of the device by pushing in both clips.

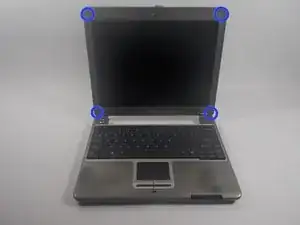

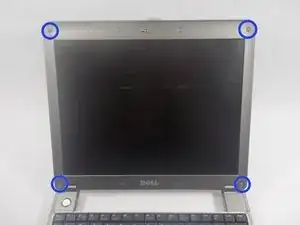

  2. eXCELOMfZRhYI2qJ
    eXCELOMfZRhYI2qJ
    56m4Zvk3naUKXUjA

    • Remove rubber caps on each corner of the front screen with a pinch.

    • Remove the 4 mm screws located on the front screen of the laptop.

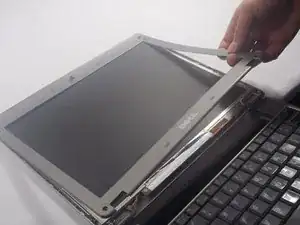

  3. RivJGTFSWwL5Ne4E

    • Carefully, remove the screen casing using either your hands or a proper tool.

    • The casing is very flimsy, so extreme care is required.

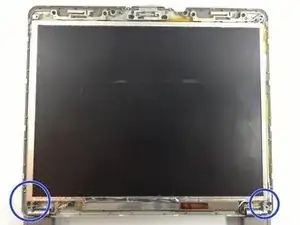

  4. uI2FAYGf5R6MVdwU

    • Remove the 4 mm screws on the bottom left and bottom right corner of the screen.

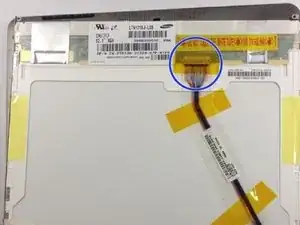

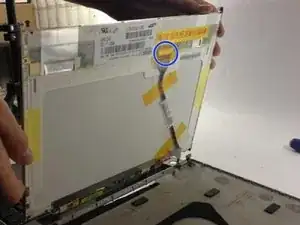

  5. t1VuAmcqUoaa4EZR
    t1VuAmcqUoaa4EZR
    5Ni6kmh1VICSmE1j

    • Carefully lift the screen and place it on it's face.

    • Disconnect the wiring attached to the screen.

    • It is important not to damage this wire.

Conclusion

To reassemble your device, follow these instructions in reverse order.
