Dell Latitude X300 Hard Drive Replacement

Written By: Taylor Bateman
  • Comments: 1
Dell Latitude X300 Hard Drive Replacement

Difficulty

Moderate

Steps

14

Time Required

30 - 40 minutes

Introduction

Before removing/replacing the Dell Latitude X300 hard drive, the battery, keyboard, and palm rest/trackpad will need to be removed.

  1. qICCXIaNXGcBEVkS

    • Before removing the battery from the laptop, make sure the power is off.

    • Push both battery locking clips outward at the same time.

  2. YWUnQZarvEKRYGVD

    • Slide the battery out of the laptop.

  3. fWK5E5Pb255TwcPK

    • Remove the four 4 mm Phillips #0 screws from the bottom of the laptop.

  4. 4NGQGNt4KDFJfGli
    4NGQGNt4KDFJfGli

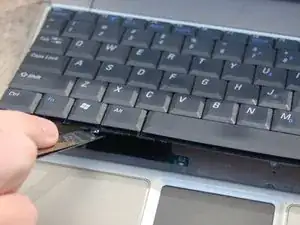

    rGpNKObhjS63iZvU

    • Carefully turn the laptop over and open the screen all the way.

    • Locate the slot to remove the keyboard in the lower left hand corner.

    • Using a spudger as a lever, insert it into the slot and gently pry up.

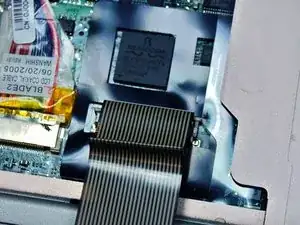

  5. boEVdtVrJcKA6RxD

    • After the keyboard pops up, pull it away from the screen just enough to release the tabs.

    • Don’t pull the keyboard out forcefully as there is still a ribbon attached to the laptop.

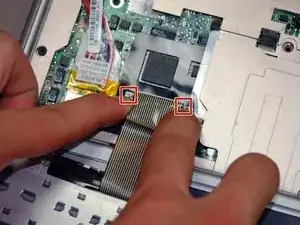

  6. kKhbEEF3gKqIO2Jp

    • Unlock the ZIF connector on the computer by pushing the two outside tabs toward the screen.

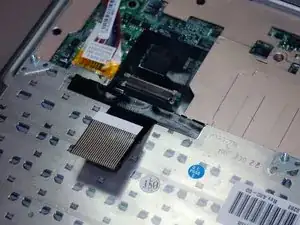

  7. kOeXhhLvvOSDPENM

    • Remove the flexible ribbon from the ZIF connector.

    • Do not pull on the ribbon to remove it from the ZIF connector.

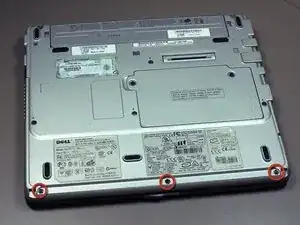

  8. h14Ce4Af6oBSelPi

    • Position the laptop so that the bottom is facing upward.

    • Remove the three 4 mm Phillips #0 screws holding the bottom of the palm rest.

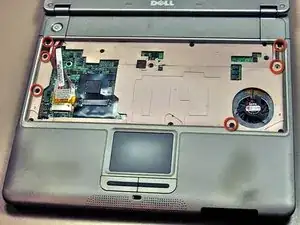

  9. cV3S2FAOGUwTKMcv

    • Return the laptop to proper position and open the screen.

    • Remove the six 4 mm Phillips #0 screws holding in the palm rest.

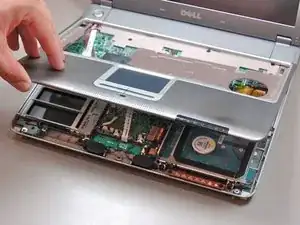

  10. cDWFvMIUpCAxDpqV

    • Gently lift the palm rest and rotate it outward so that the bottom is now facing up.

    • The ribbon attached to the track is short and extremely delicate. Use care when moving the palm rest.

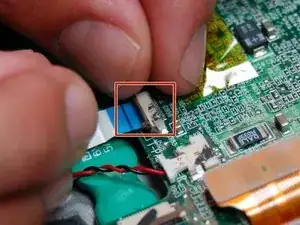

  11. h1mijPFDFao6jdDq

    • Lift up on the small ZIF connector and remove the ribbon.

    • If the ribbon seems stuck, gently wiggle it to remove. Do not pull the ribbon with great force.

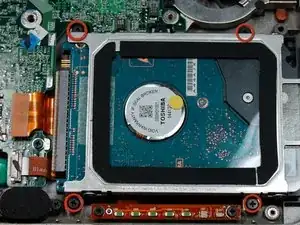

  12. nZxQ4NeDerkFn6X5

    • Remove the 4 #00 5 mm screws holding the hard drive to the case.

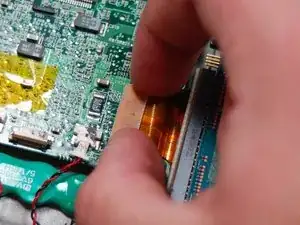

  13. XasLGBruNhBNCa2C

    • Carefully pull up on the hard molded plastic portion of the ribbon to detach it from the computer.

  14. PtSTZfR4bJKuNIZa

    • Remove the hard drive from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
