Dell Latitude EG6510 Fan Replacement

Written By: Christopher Owen
  • Comments: 0
Dell Latitude EG6510 Fan Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 10 minutes

Introduction

If the laptop tends to overheat, this could be a result of the fan not functioning properly. The following is a step-by-step guide to remove and replace the fan in the Dell Latitude E6510.

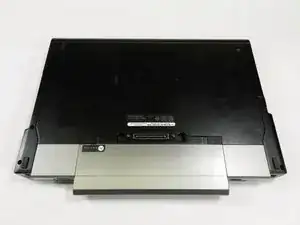

  1. yiiFFkfDOqcqBqHW
    yiiFFkfDOqcqBqHW

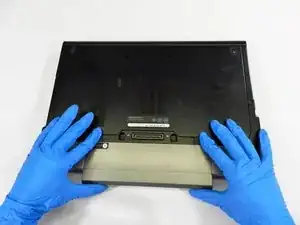

    awVewZf3vhYeBNXA

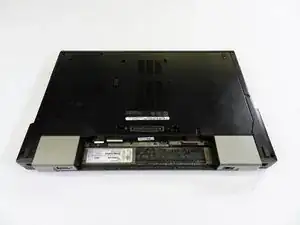

    bWXtiYgMIFOKkIQ5

    • Push the two tabs in and pull out the battery pack.

  2. tZXSCrk2CGBGmBZh
    tZXSCrk2CGBGmBZh

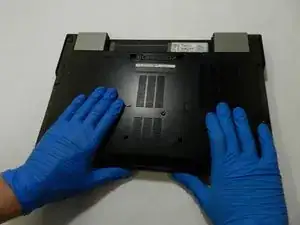

    x3ChDFiHaJZpJIuO

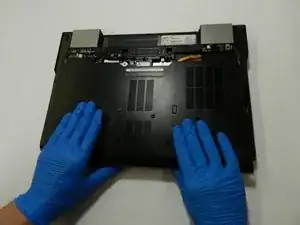

    vaiIpZP4tgmiLyjQ

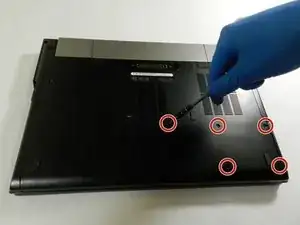

    • Remove the 5 screws from the back panel of the laptop using a Type 0 Phillips Head screwdriver.

    • Slide the back panel off of the computer.

  3. KhSuh1BSjFcL6sBK
    KhSuh1BSjFcL6sBK
    2U4rp5TwFwGqmv6W

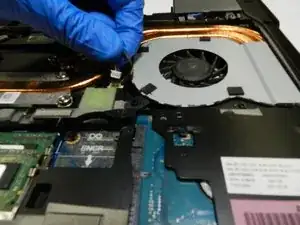

    • Carefully detach the fan power supply cable.

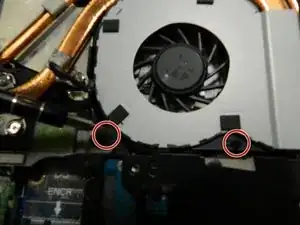

  4. ekMP4Fk65ytTZavk

    • Remove the two screws connecting the fan to the laptop using a type 0 head Phillips screwdriver.

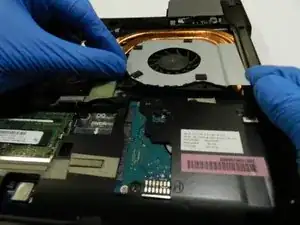

  5. FZc2Zcs1eCOrVH4A
    FZc2Zcs1eCOrVH4A

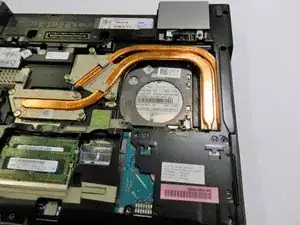

    2DskLBdbZe5LxH6h

    • Remove the fan from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
