Dell Latitude E7440 Service Panel Replacement

Written By: Nick
  • Comments: 0
Dell Latitude E7440 Service Panel Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. qcZH1Ro3r5iIvGUO

    • Power off your laptop before starting.

    • Flip the device over so that the vents on the bottom are facing away from you.

  2. tryHCSpQL5UUpqLw
    tryHCSpQL5UUpqLw
    4h2yh162QmWaf1xJ
    xOhOen65DPcJY4au

    • Place your finger on the latch located in the center of the laptop.

    • Slide the latch to the right, applying enough force to reveal a red indicator.

    • You will hear a soft click when the latch has been disengaged.

  3. MtHoVknvkxRhW4KH

    • Lift the battery by the top, away from the laptop body.

  4. sC23muYehZkhaBFJ
    sC23muYehZkhaBFJ
    CNRKCDLBVycwZY6T

    • EET owners: Your kit has this bit. No purchase needed.

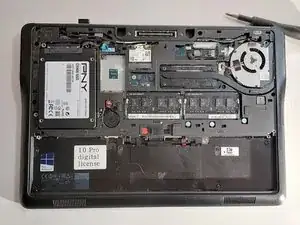

    • After removing the battery, remove the 2 Phillips #0 screws securing the service panel.

    • Slide the panel off after removing the screws.

Conclusion

To reassemble your device, follow these instructions in reverse order.
