Dell Latitude E7440 RAM Replacement

Written By: Akash Kedia
  • Comments: 0
Dell Latitude E7440 RAM Replacement

Difficulty

Easy

Steps

6

Time Required

5 minutes

Introduction

You may have noticed your computer slowing down when using several programs. This is likely a result of insufficient RAM. Fortunately, Dell made RAM replacement straightforward, allowing you to easily upgrade your RAM capacity.

  1. qcZH1Ro3r5iIvGUO

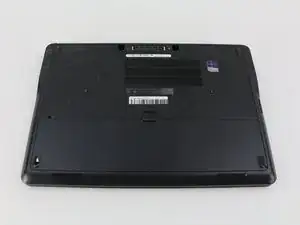

    • Power off your laptop before starting.

    • Flip the device over so that the vents on the bottom are facing away from you.

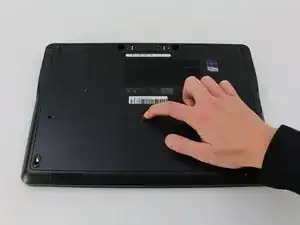

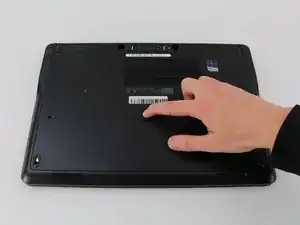

  2. tryHCSpQL5UUpqLw
    tryHCSpQL5UUpqLw
    4h2yh162QmWaf1xJ
    xOhOen65DPcJY4au

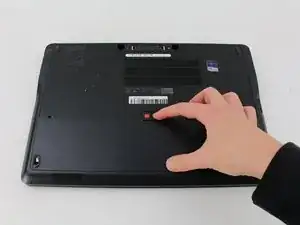

    • Place your finger on the latch located in the center of the laptop.

    • Slide the latch to the right, applying enough force to reveal a red indicator.

    • You will hear a soft click when the latch has been disengaged.

  3. MtHoVknvkxRhW4KH

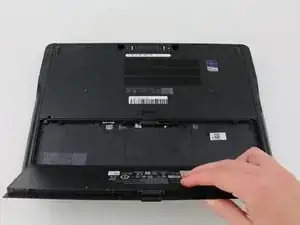

    • Lift the battery by the top, away from the laptop body.

  4. bhlaOEUvtayKNp6s
    bhlaOEUvtayKNp6s
    RtJNR3VOl3WPY2oW

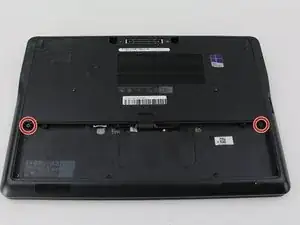

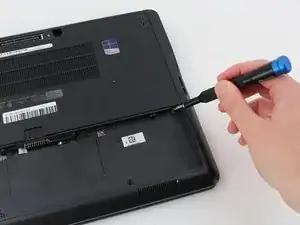

    • Remove two M2 x 3mm Phillips #0 screws from the base cover.

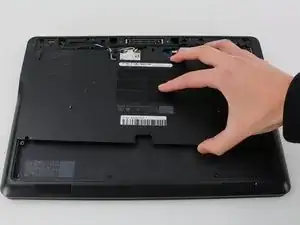

  5. QqDP4W5AjmL22usK
    QqDP4W5AjmL22usK
    gqZBxuBlGyVJiDZZ

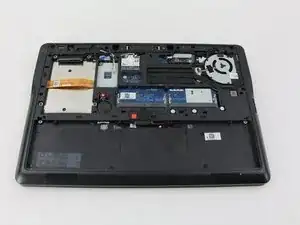

    • Slide the base cover down slightly and remove it.

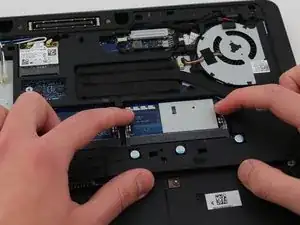

  6. ufITGfu2yD3HM5Eh
    ufITGfu2yD3HM5Eh
    dKpEjAgxx6bCjmPh
    tCatVpQd3kvJTKUl

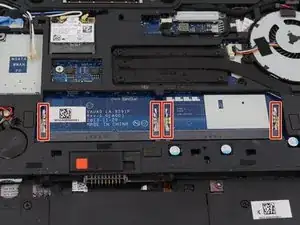

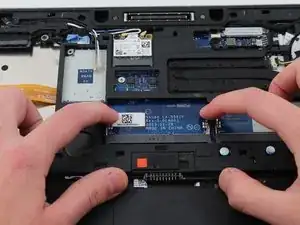

    • For each RAM module, pull apart both the clips and remove the memory.

    • iFixit’s device came without RAM installed. Your device will have a module between each set of clips.

Conclusion

To reassemble your device, follow these instructions in reverse order.
