Dell Latitude E7250 SSD Replacement

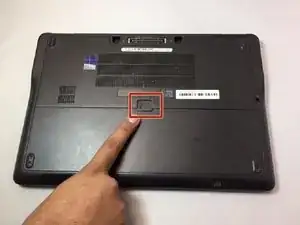

Slide the battery release all the way to the right.

Once the battery release is pulled all the way, the battery will lift itself slightly from the casing.

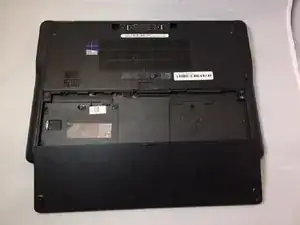

Remove the battery.

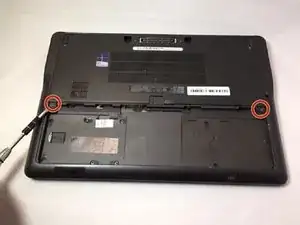

With the battery removed two screws will be visible. These will need to be removed.

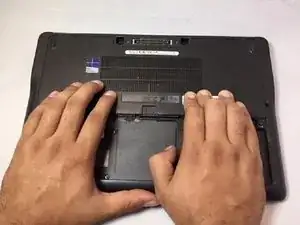

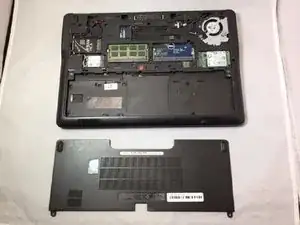

Placing your hands on either side of the panel, push down and pull back to slide the plate back and off.

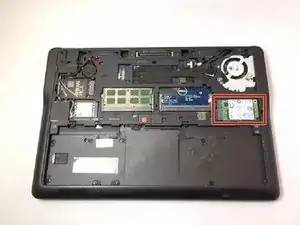

Locate your SSD, it is on the right side and held in with a small screw.

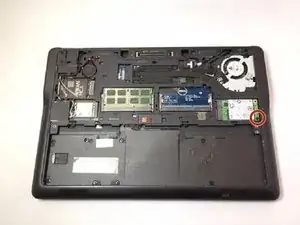

Unscrew the SSD carefully. Once done, the SSD will "pop" upwards at an angle making removal easy.

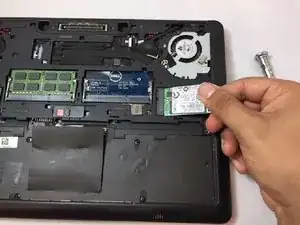

Gently grasp the SSD on either side with your thumb and forefinger and pull away from the computer.
