Dell Latitude E6530 RAM Replacement

Written By: Elias Linsin
  • Comments: 0
Dell Latitude E6530 RAM Replacement

Difficulty

Easy

Steps

2

Time Required

5 minutes

Introduction

This guide will walk users through on how to replace or upgrade the RAM of a Dell Latitude E6530.

  1. jo21LtbDpt4jBiln
    jo21LtbDpt4jBiln
    BUIPBZg5AQ2PN1Ib

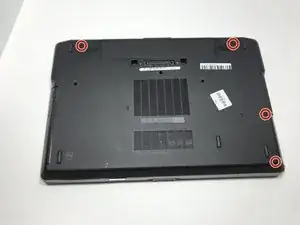

    • Remove the four screws to remove the back panel using the Phillips #00 screwdriver.

  2. lweOQDvgu26V6mNB
    lweOQDvgu26V6mNB
    52FmsNHXvtvbiodL

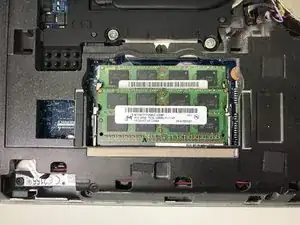

    • Remove the RAM by carefully pulling apart the metal pins on each side.

    • You do not need to force the holders open, it should click and the chip will pop upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
