Dell Latitude E6520 RAM Replacement

Written By: Alec Weiss
  • Comments: 1
Dell Latitude E6520 RAM Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

RAM (Random Access Memory) determines how quickly your computer performs. Upgrading or adding RAM will improve the performance of your computer.

  1. YODIoScXqNSNrwXN
    YODIoScXqNSNrwXN
    BlXeFUWLxEVNsBuC

    • With the laptop closed and the bottom side facing up, slide the two battery latches towards the sides of the laptop.

    • When the latches are unlocked, a small logo resembling an open padlock will become visible.

  2. ulTVRdLDX6fbnkmQ
    ulTVRdLDX6fbnkmQ
    dwStqnGOPWep1XGJ

    • Grasp the battery from the top and pull upward.

  3. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

    • Remove the ten 8.6 mm JIS #0 screws.

  4. 51dnONcmjmDLqdEj

    • Place fingers underneath cover and pull off the cover.

  5. TN11XDOFv1SG63FD
    TN11XDOFv1SG63FD
    EShXUFgnQFS5TQRB

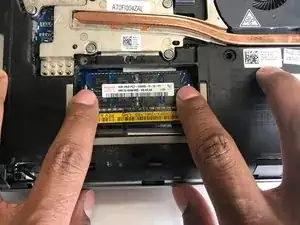

    • Push apart the two metal clips that hold the RAM in place.

  6. QrLJs2HSUlN5MclD
    QrLJs2HSUlN5MclD
    HpZDRucZQbKiVF6s

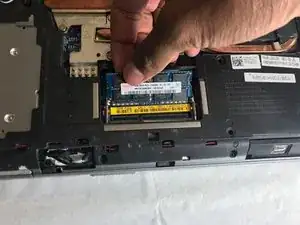

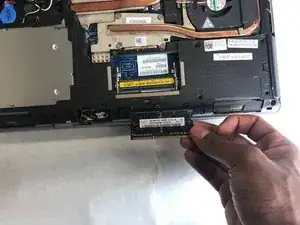

    • Pull the card out of the connection port.

Conclusion

To reassemble your device, follow these instructions in reverse order.
