Dell Latitude E6520 Bottom Cover Replacement

Written By: Alec Weiss
  • Comments: 0
Dell Latitude E6520 Bottom Cover Replacement

Difficulty

Easy

Steps

4

Time Required

3 minutes

Introduction

The bottom plastic cover is held on by 10 JIS #0 screws with a head size of 3.93 mm and a length of 8.46 mm.

  1. YODIoScXqNSNrwXN
    YODIoScXqNSNrwXN
    BlXeFUWLxEVNsBuC

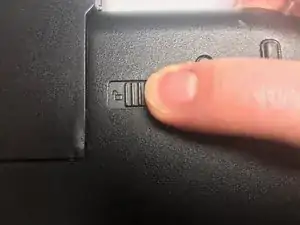

    • With the laptop closed and the bottom side facing up, slide the two battery latches towards the sides of the laptop.

    • When the latches are unlocked, a small logo resembling an open padlock will become visible.

  2. ulTVRdLDX6fbnkmQ
    ulTVRdLDX6fbnkmQ
    dwStqnGOPWep1XGJ

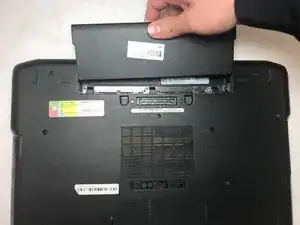

    • Grasp the battery from the top and pull upward.

  3. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

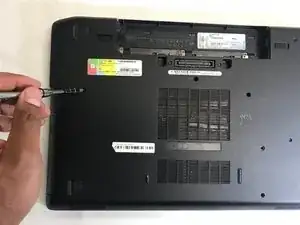

    • Remove the ten 8.6 mm JIS #0 screws.

  4. 51dnONcmjmDLqdEj

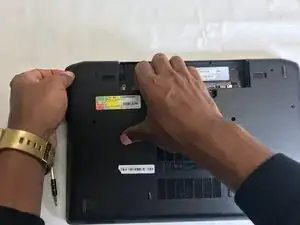

    • Place fingers underneath cover and pull off the cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
