Dell Latitude E6510 RAM Replacement

Written By: Kolin Doyle
  • Comments: 1
Dell Latitude E6510 RAM Replacement

Difficulty

Easy

Steps

2

Time Required

1 minute

Introduction

Looking to upgrade your memory? Use this guide to upgrade or replace the RAM on your Dell Latitude E6510.

  1. 41ClZmhMZ5ooZJQn

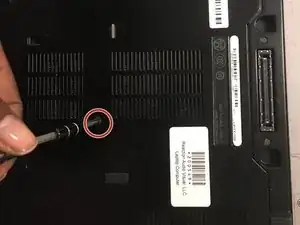

    • Use a J1 screwdriver to remove the 8mm screw on the bottom cover.

  2. VAdculmL4uoACdYC

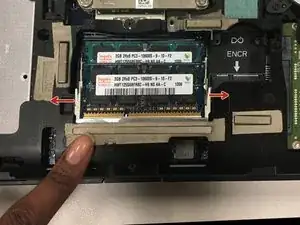

    • Unclasp and pull the memory card up.

    • Be careful when unclasping and releasing the memory card. Clasps are fragile.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Kolin Doyle

Member since: 06/11/17

500 Reputation

One comment

There should be four steps to this, step two should be removing the 4 hard drive screws,

step three should be removing the bottom cover, including that it slides off, as many bottom covers snap in.

I almost damaged the bottom cover trying to pry it up.

Brian Barlow -
